[Genuine Original Part] HW1500 Wire Feeder Components | Feed Roller, Guide Tip, Guide Tube, Liner

From Wire Feeder to Molten Pool: Original Technology Ensures Stable Output Every Millimeter
The precision quality of laser welding depends on the absolute stability of the wire feeding. HPT original wire feeding guide kits utilize low-friction materials and precision tolerance designs to effectively eliminate wire jitter, jamming, and resistance, ensuring beautiful weld formation and consistent strength.

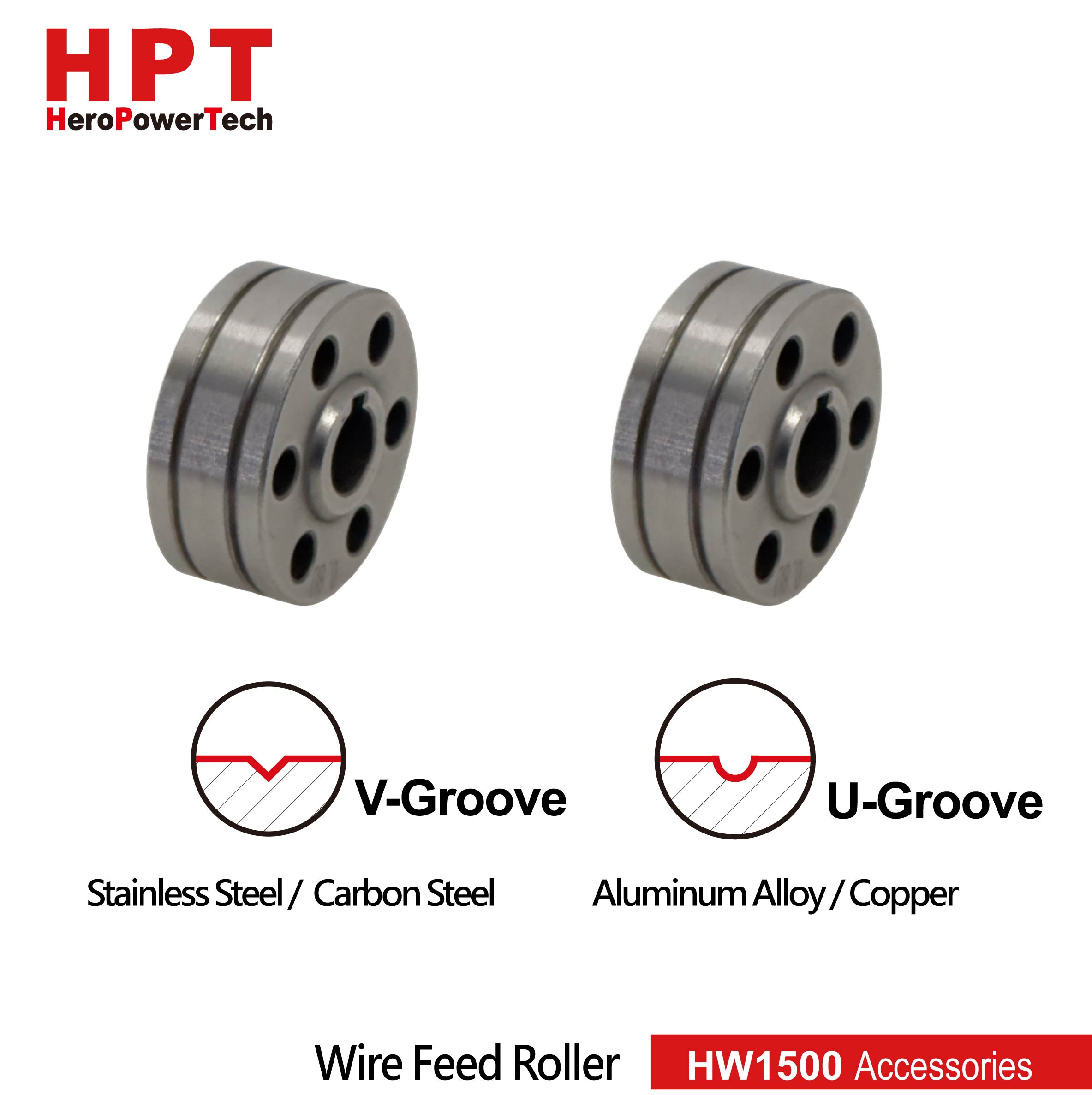

1. Wire Feed Roller — Precision Guidance without Slipping or Deformation
Made from high-hardness, wear-resistant steel with precision groove machining to ensure accurate wire guidance during high-speed transmission.

V-Groove (Standard): Specifically designed for stainless steel and carbon steel, providing high grip and stability without slipping.
U-Groove (Optional): Specifically designed for aluminum alloys and copper to prevent the deformation of soft wires and provide gentle guidance.
High Wear-Resistance Process: Special heat treatment strengthens the groove lifespan and extends replacement cycles.

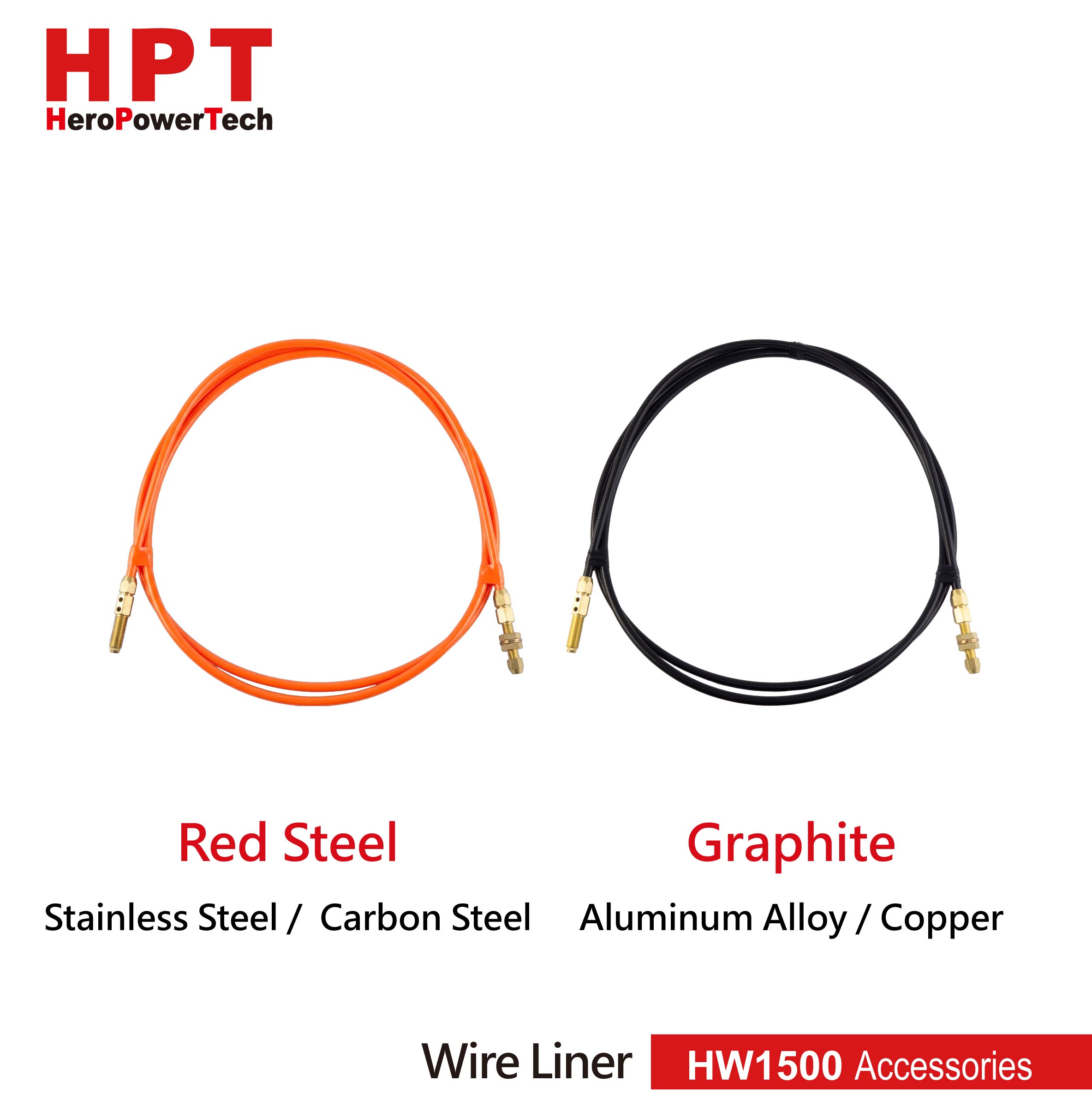

2. Wire Feed Liner — Low-Resistance Transmission, Smooth Even Over Long Distances
Exclusive materials are matched according to the hardness of the welding wire to minimize the friction coefficient.

Red Steel Wire Liner: Designed for stainless steel and carbon steel, offering excellent wear and kink resistance, suitable for harsh working environments.
Graphite Wire Liner: Designed for aluminum alloys, utilizing the self-lubricating properties of graphite to prevent soft aluminum wires from being obstructed or worn inside the liner.
3. Wire Guide Tube — Deep Reach into Narrow Slots, Precise Positioning
Select the optimal length based on the workpiece structure to ensure the wire accurately enters the center of the molten pool.

60mm Standard Type: Flexible and versatile, suitable for over 90% of welding scenarios.
100mm Deep Corner/Narrow Slot Type: Specialized for restricted spaces such as deep holes and narrow gaps, improving operational precision.

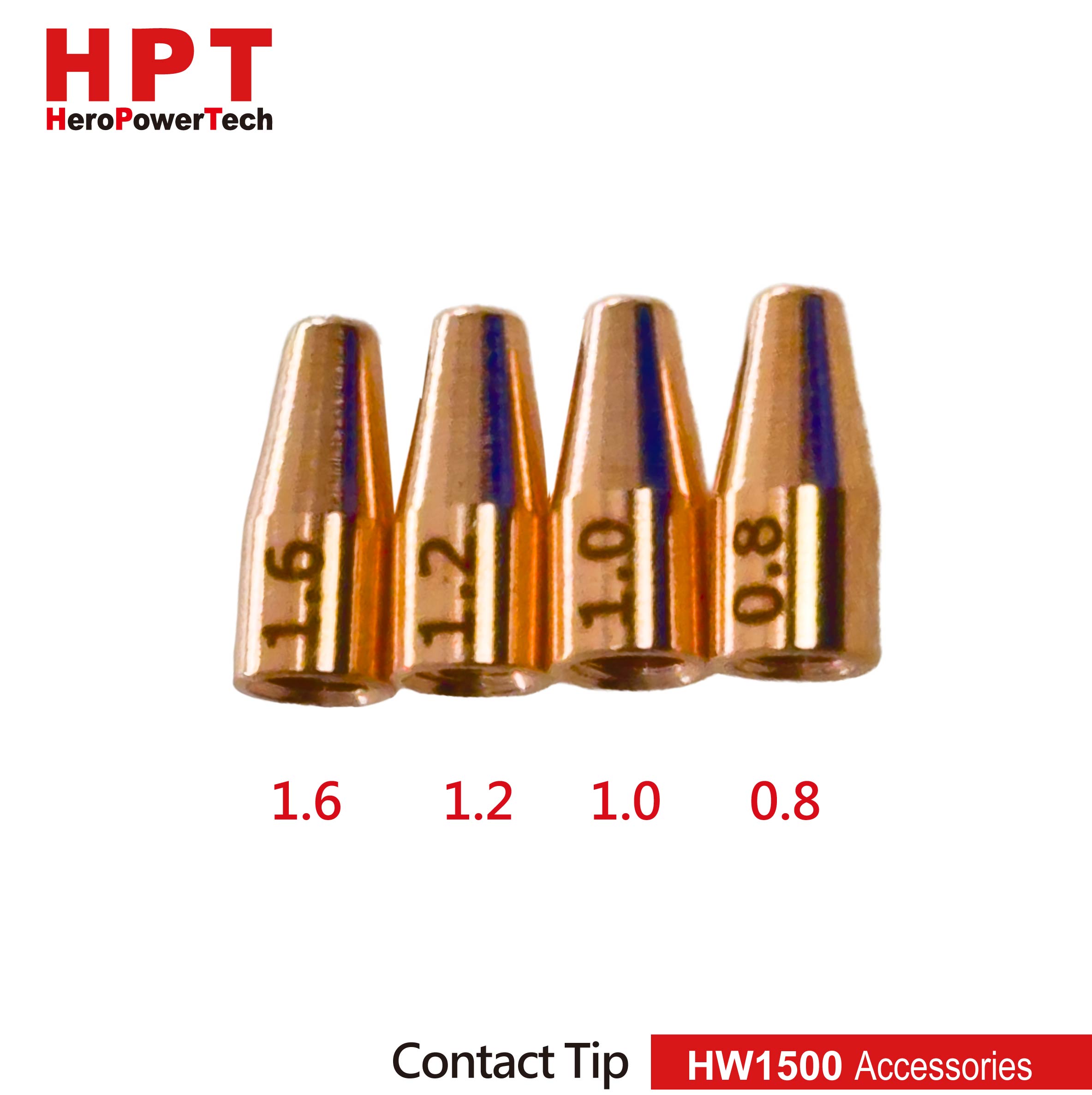

4. Contact Tip (Guide Tip) — Stable Arc, Superior Conductivity
Available in a full range of specifications (0.8mm / 1.0mm / 1.2mm / 1.6mm) to ensure a perfect match between conductivity and aperture, reducing spatter and arc drift.

Professional Maintenance Suggestions

• Regular Cleaning: It is recommended to use compressed air to blow out dust inside the wire feed liner every time a new wire spool is replaced.
• Timely Replacement: When increased feeding resistance is noticed or the tip aperture becomes oval-shaped, replace with original parts immediately to avoid damaging the welding machine or causing weld defects.
