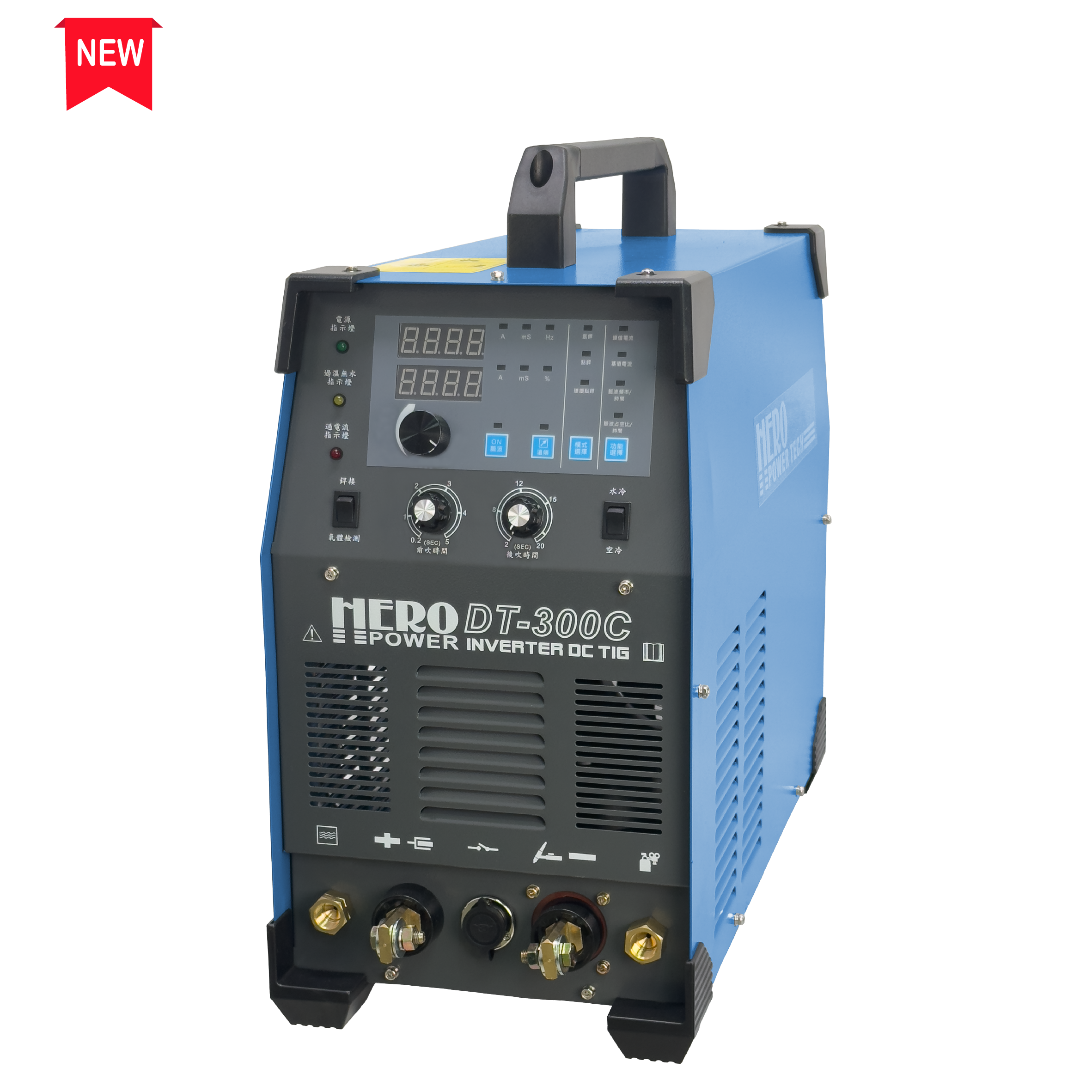

DT-300C
TIG connection to automation equipment
Spot time from 1 to 1000 ms can be set and adjusted.
Spot welding function to cold welding effect level
RS485-Modbus Communications
Multi-set analog controlled pulse parameters
Control parameter dataization
Inverter technology for energy-efficient
Thermal Overload Protection
Specifications
| Input Power | V | 220V, 1/3Φ | Pre flow time | Sec | 0.2~5 |
| 380/415V, 3Φ | Post flow time | Sec | 2~20 | ||
| Input voltage range | % | ±15% | Pulse current | A | 10~300 |
| Input frequency | HZ | 50&60 | Pulse frequency | HZ | 1~20 |
| Rated input capacity | KVA | 11.46 | |||
| KW | 8.23 | ||||
| Rated output | V | TIG：22 | Pulse Ratio Width | % | 5~95 |
| Duty cycle | - | 300A / 40% | |||
| A | TIG：300 | 190A / 100% | |||
| Water cooler control | - | ✔ | |||
| Welding amperage range | A | TIG：10~300 | Cleam | - | - |
| Gas check | - | ✔ | |||
| Efficiency | % | 80 | Crater control | - | Spot / Stitch Welding |
| Open-circuit voltage | V | 70 | Insulation class | - | H |
| Up slope | Sec | - | Protection class | - | IP21S |
| Down slope | Sec | - | Dimension (W*D*H) | mm | 260*577*503 |
| Spot time | mS | 1~1000mS | Net Weight | kg | 25 |
