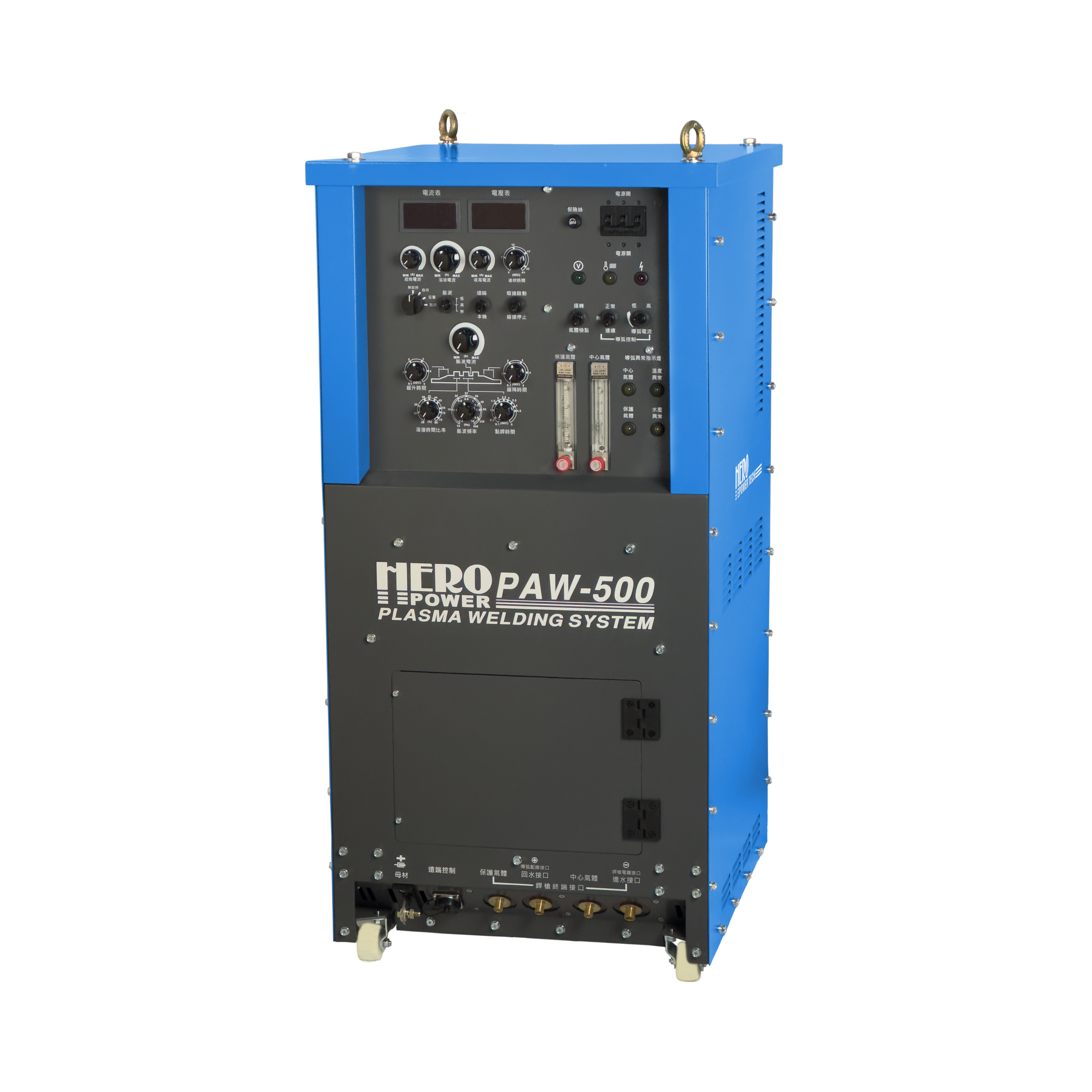

PAW-500
Inverter technology for energy-efficient
Thermal Overload Protection
With special welding function, perfect PLC control contact
Arc current 1-30A adjustable
0-10V analog interface available to control welding current
2-stage switching pulse frequency
Varis welding modes optional, with full pulse wave adjustment function
Complete plasma gas sequence control
Abnormal Signal Alarm Design+
Specifications
| Input Power | V | - | Shield Gas Pre flow time | Sec | 0.1~2.5 |
| 380V, 3Φ | Shield Gas Post flow time | Sec | 2~25 | ||
| Input voltage range | % | ±15% | Spot time | Sec | 0.1~5 |
| Input frequency | HZ | 50&60 | Pulse current | A | 5~500 |
| Rated input capacity | KVA | 18.5 | Pulse frequency | HZ | Low：0.4~14 |
| KW | 17.2 | - | |||
| Rated output | V | 30 | High：14~500 | ||
| A | 500 | Pulse frequency | % | 20~80 | |
| Welding amperage range | A | Main Arc5~500 | Duty cycle | % | - |
| Arc1~30 | 500A / 100% | ||||
| Efficiency | % | 87 | Water cooler control | - | ✔ |
| Open-circuit voltage | V | Main Arc143 | Gas check | - | ✔ |
| Arc103 | Crater control | - | Crater/ Repeat SPOT |
||
| Up slope | Sec | 0.1~5 | Insulation class | - | H |
| Down slope | Sec | 0.1~5 | Protection class | - | IP21S |
| Plasma Gas Pre flow time | Sec | 0.1~2.5 | Dimension (W*D*H) | mm | 600*540*1120 |
| Plasma Gas Post flow time | Sec | 0.5~12 | Net Weight | Kg | 121 |
