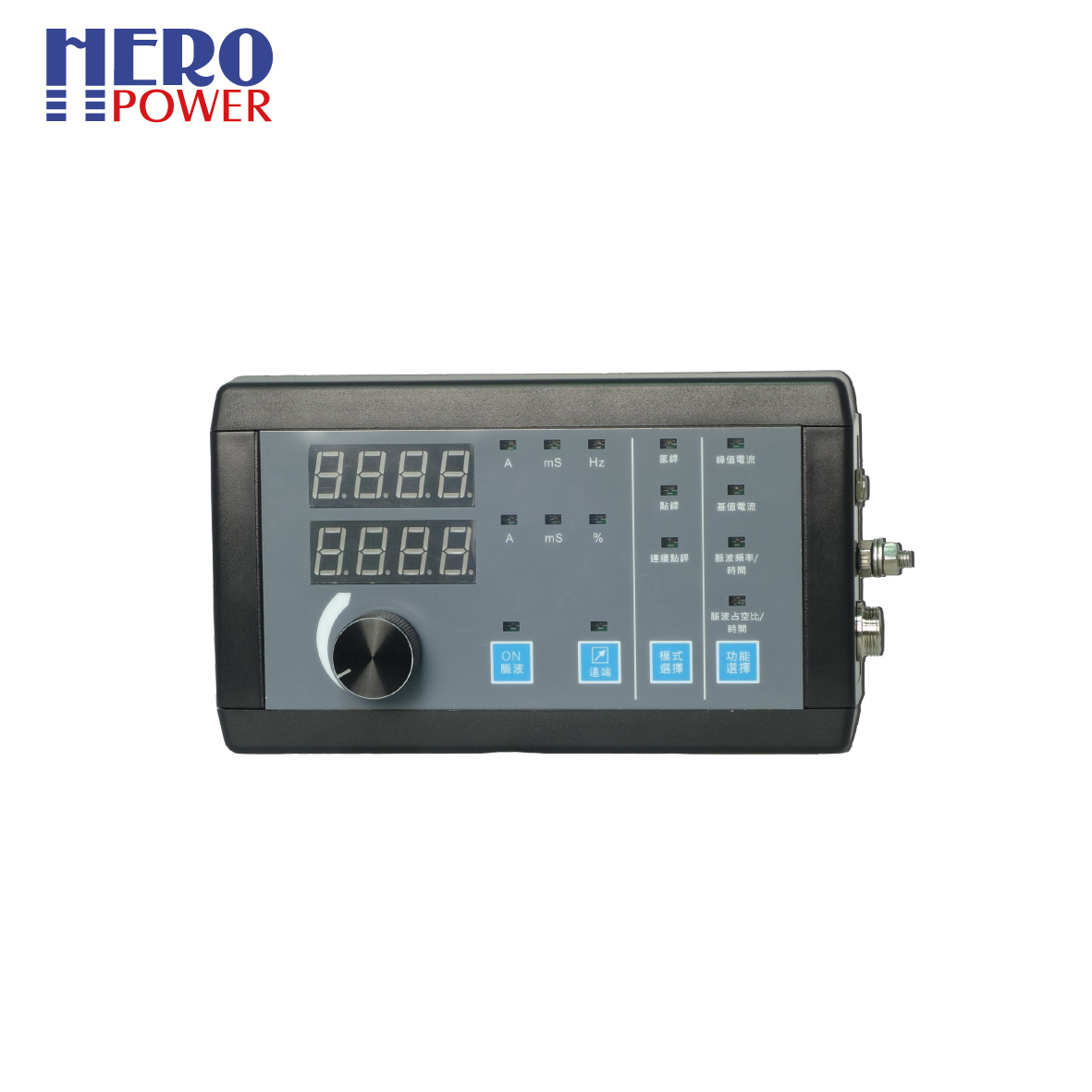

Digital Automation Controller
RS485-Modbus Communications
Multi-set analog controlled pulse parameters
TIG connection to automation equipment
Spot welding function to cold welding effect level
Control parameter dataization

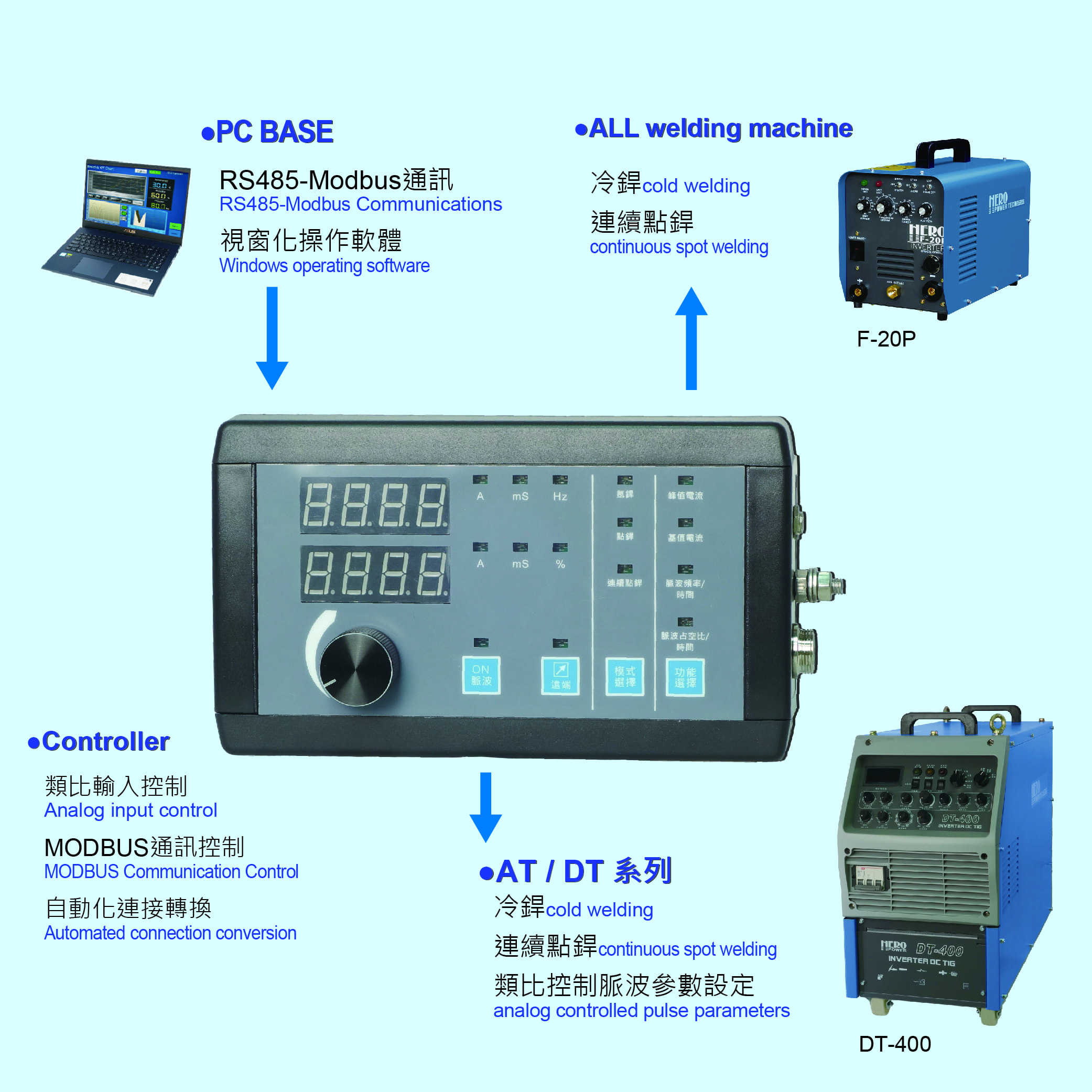

The automatic controller can be remotely controlled with 99% of the welding machines on the market, and the RS-485 MODBUS communication control and analog 0~10V control are available.
Integrated time switch control allows the welding machine to achieve cold welding effect, can choose a single spot welding or continuous spot welding, through the action of the controller to ensure that each point is the same, stable and consistent.
Specifications
| Name | Digital Automation Controller |
| Model | Cold Welding Control |
| Voltage | AC 100~220V - 50/60HZ |
| Power | 15W |
| Frequency | 1~20HZ |
| Applicable | Ａll argon welders |
| Operation Mode | Argon Welding - Spot Welding - Continuous Spot Welding |
| Time Mode | ON Time: 1~1000ms |
| OFF Time: 1~1000ms | |
| Frequency mode | Pulse frequency：1~20 Hz |
| Pulse duty cycle：5~95% | |
| Dimensions (W*D*H) | 215*60*115mm |
| Weight | 430g |
