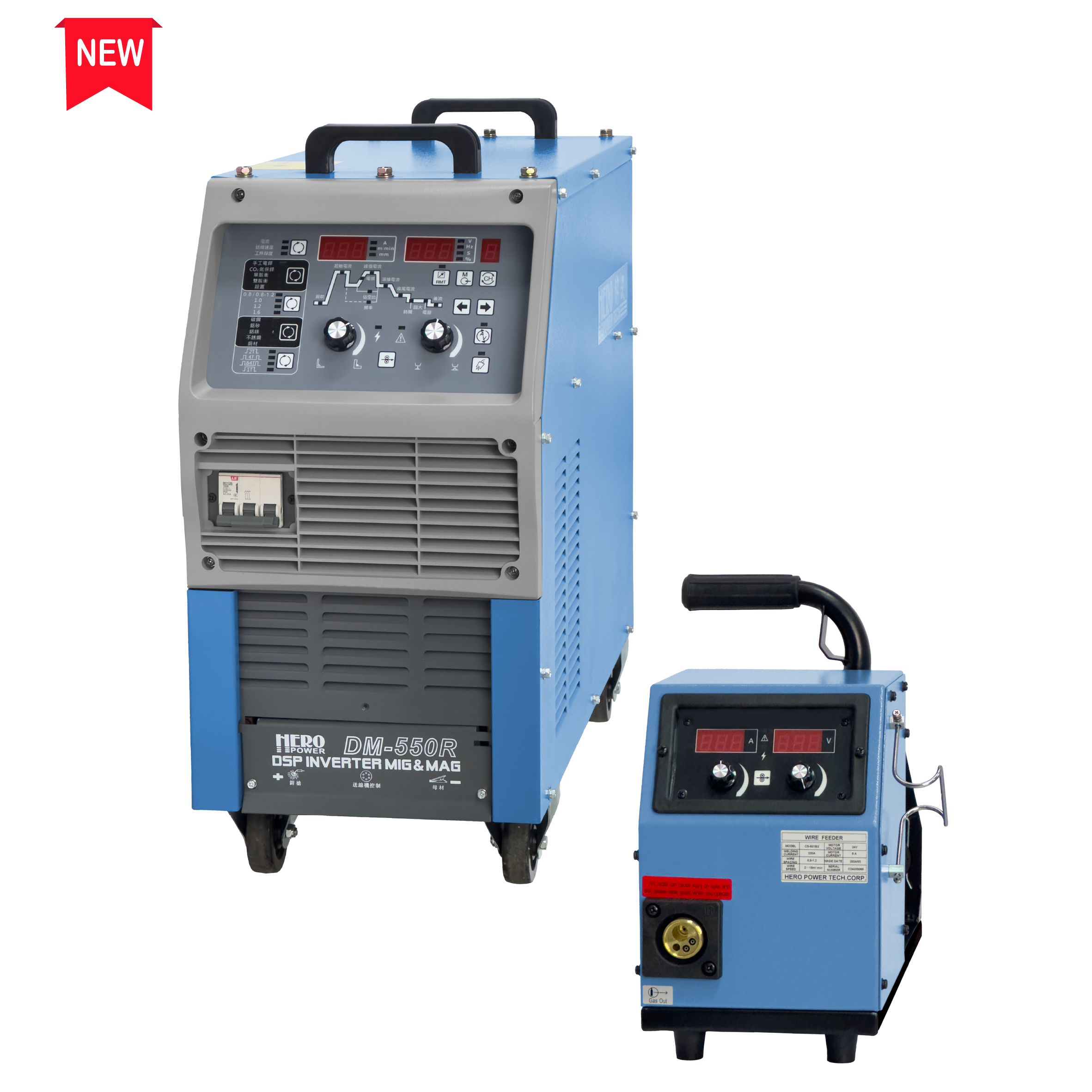

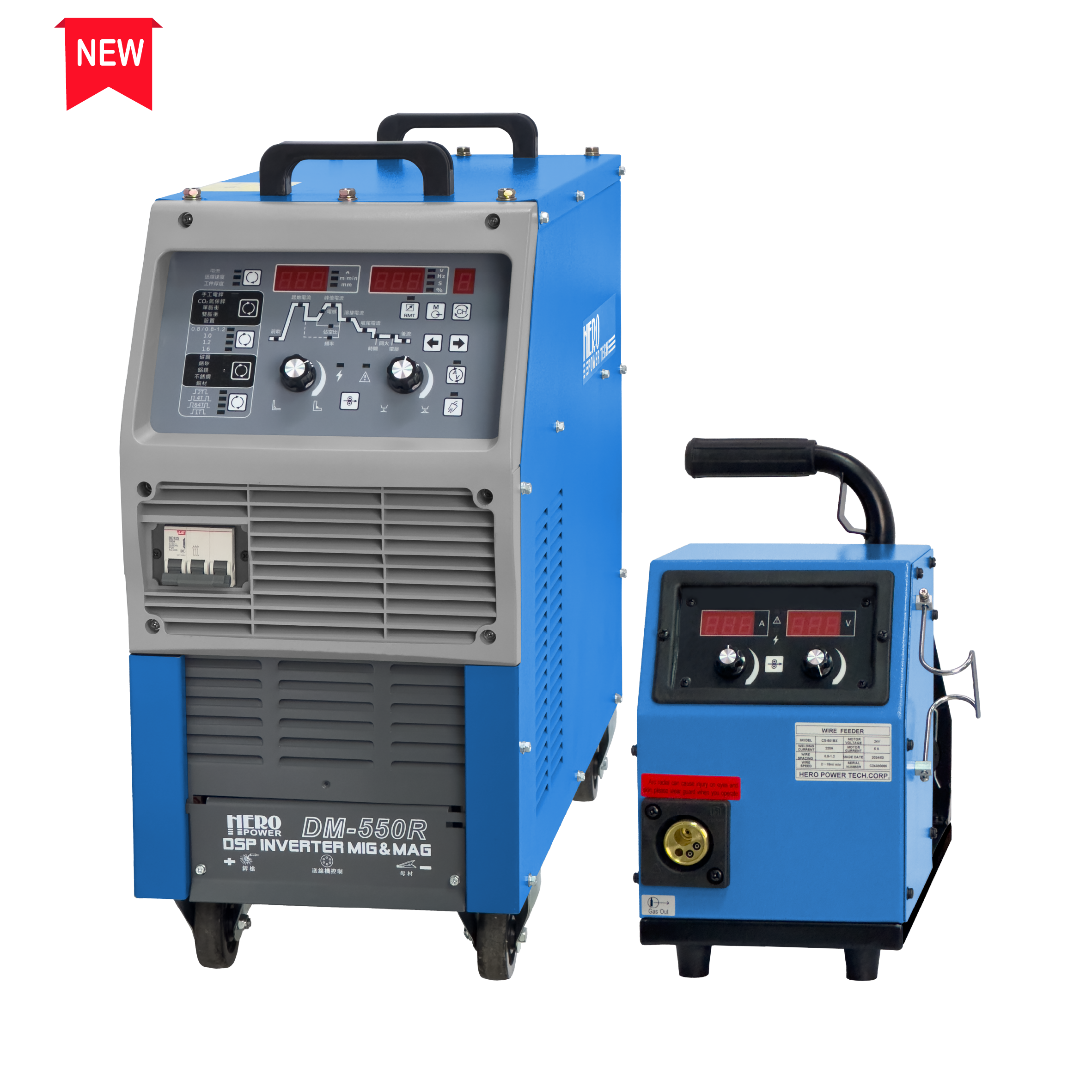

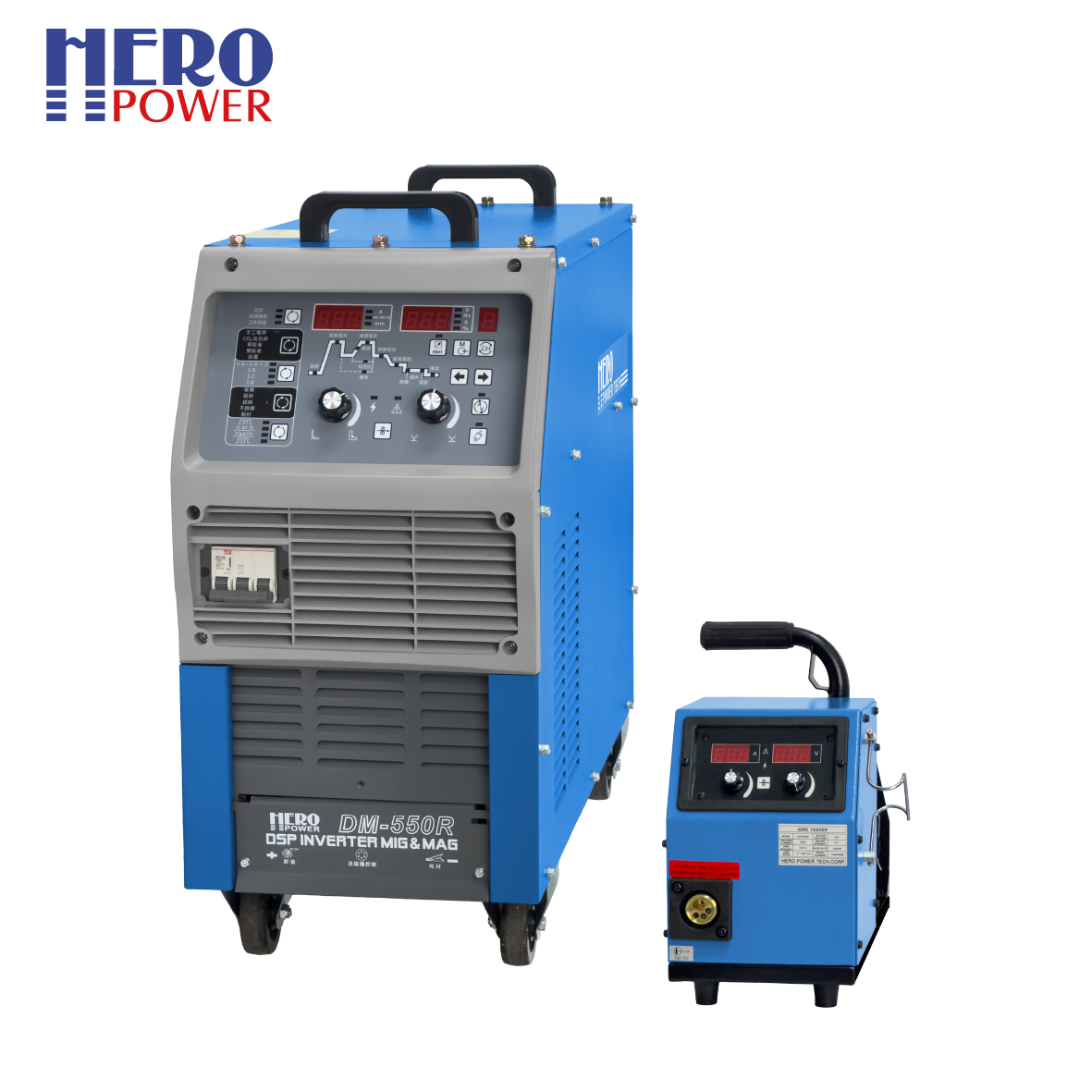

DM-550R
multi-function: pulse MIG welding, double pulse MIG welding, CO2 MIG welding, constant current argon arc welding, pulse TIG welding, manual welding.
Welding wire diameter - 0.8mm, 1.0mm, 1.2mm, 1.6mm.
Digital control, parameter preset for welding current, voltage, welding material, wire diameter, etc.
Can store 10 sets of welding data.
The welding function included two steps, four steps and special four steps.
Optional simulation communication module for automatic welding or robot welding equipment in tegration.
Specifications
| Input Power | V | 220, 3Φ | Duty cycle | - | 550A / 60% |
| 380/415, 3Φ | 426A / 100% | ||||
| Input voltage range | % | ±15% | Mig wire | mm | Φ0.8(0.9),Φ1.0 |
| Input frequency | HZ | 50&60 | Φ1.2,Φ1.6 | ||
| Rated input capacity | KVA | 32 | Pre flow time | Sec | 0~3.0 |
| KW | 26 | Post flow time | Sec | 0~20.0 | |
| Rated output | V | 41.5 | Suggested welding depth | mm | 0.8< |
| A | 550 | Insulation class | - | H | |
| Welding amperage range | A | 50~550 | Protection class | - | IP21S |
| Efficiency | % | 88 | Dimension (W*D*H) | mm | 300*760*670 |
| Open-circuit voltage | V | 70 | Net Weight | Kg | 60 |
