Hero Power Technology Corp.

Inverter technology for energy-efficient
Thermal Overload Protection
Multifunction include TIG pulse,crater,repeat ,Spot,MMA(STICK) etc.
Easy to set up and operate

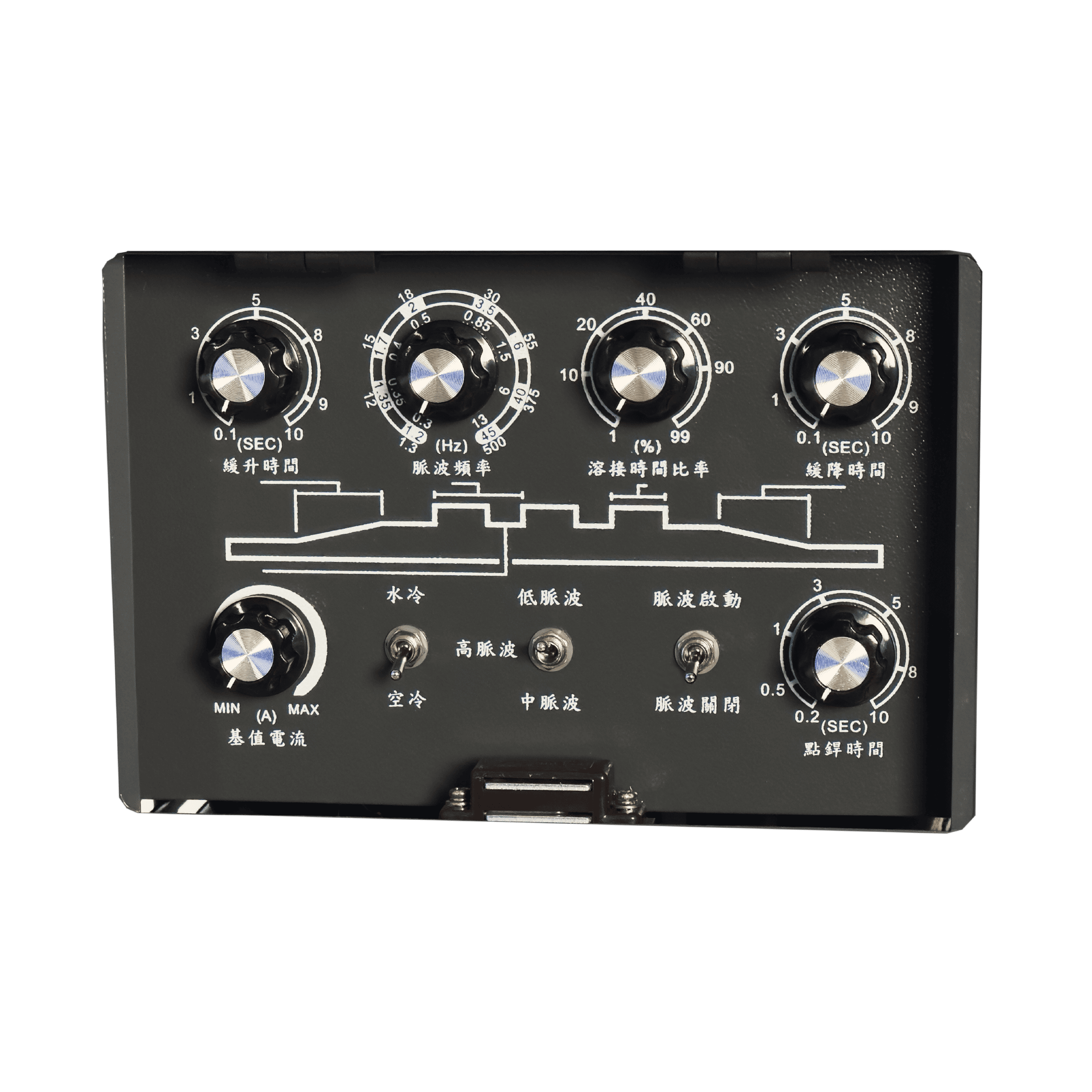

Pulse function flexible adjustable
4-segment arc control(S-hard/hard/soft/S-soft)
Provide lift arc start

Specifications

Specifications
Applications
Related Products
Related Accessories

Input Power	V	220V, 1/3Φ	Pre flow time	Sec	0.2~5
Input Power	V	380/415V, 3Φ	Post flow time	Sec	2~20
Input voltage range	%	±15%	Pulse current	A	10~300
Input frequency	HZ	50&60	Pulse frequency	HZ	High：7.5~500
Rated input capacity	KVA	11.46			Middle：13~47
Rated input capacity	KW	8.23			Low：0.4~27
Rated output	V	TIG：22	Pulse Ratio Width	%	1~99
	V	STICK：30	Duty cycle	-	300A / 40%
	A	TIG：300	Duty cycle	-	190A / 100%
	A	STICK：250	Water cooler control	-	✔
Welding amperage range	A	TIG： 10~300	Cleam	-	-
Welding amperage range	A	STICK：10~250	Gas check	-	✔
Efficiency	%	80	Crater control	-	Crater/ Repeat/ Special 2T
Open-circuit voltage	V	70	Insulation class	-	H
Up slope	Sec	0.1~10	Protection class	-	IP21S
Down slope	Sec	0.1~10	Dimension (WDH)	mm	260577503
Spot time	Sec	0.2~10	Net Weight	kg	25
