Welding Equipment
Welding Equipment

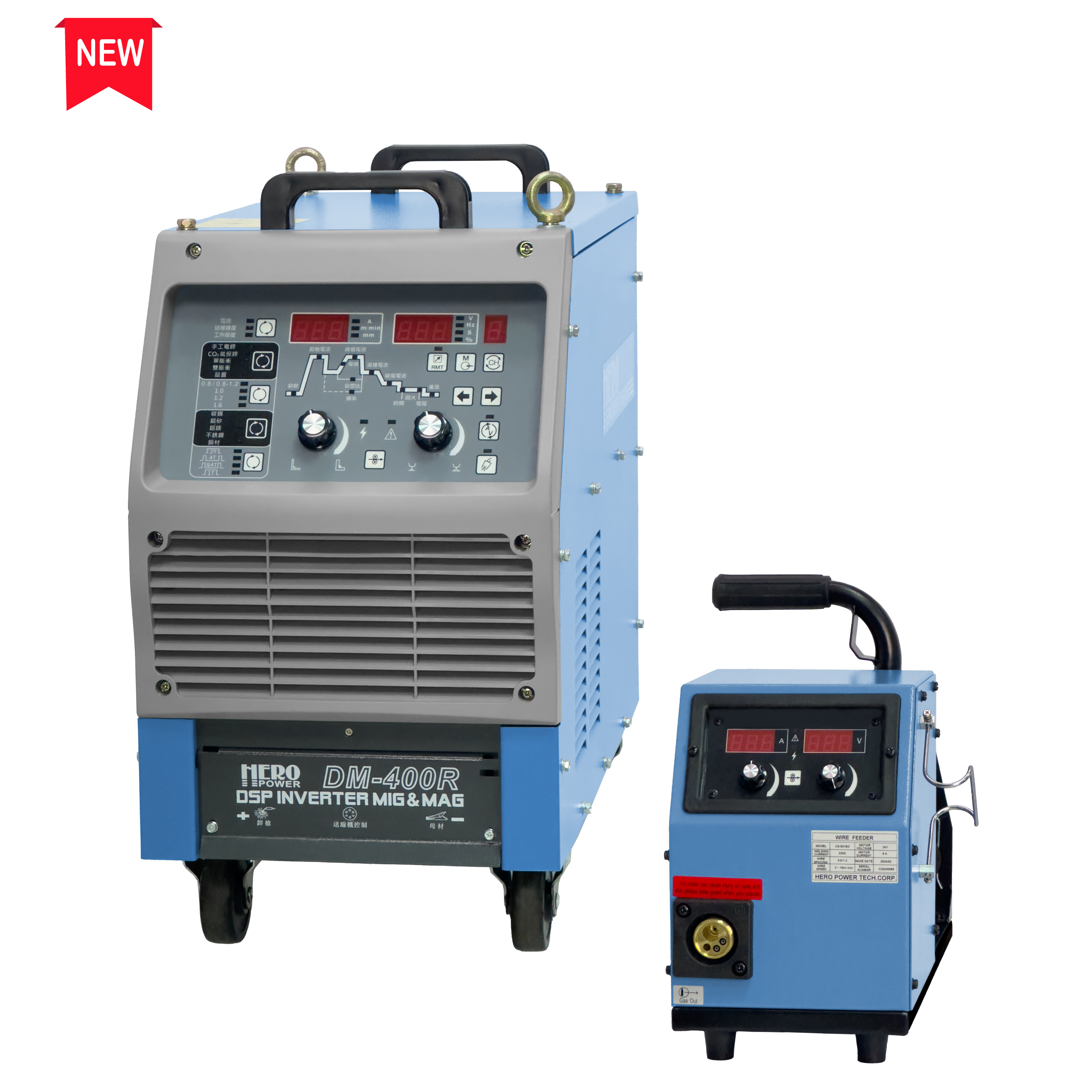

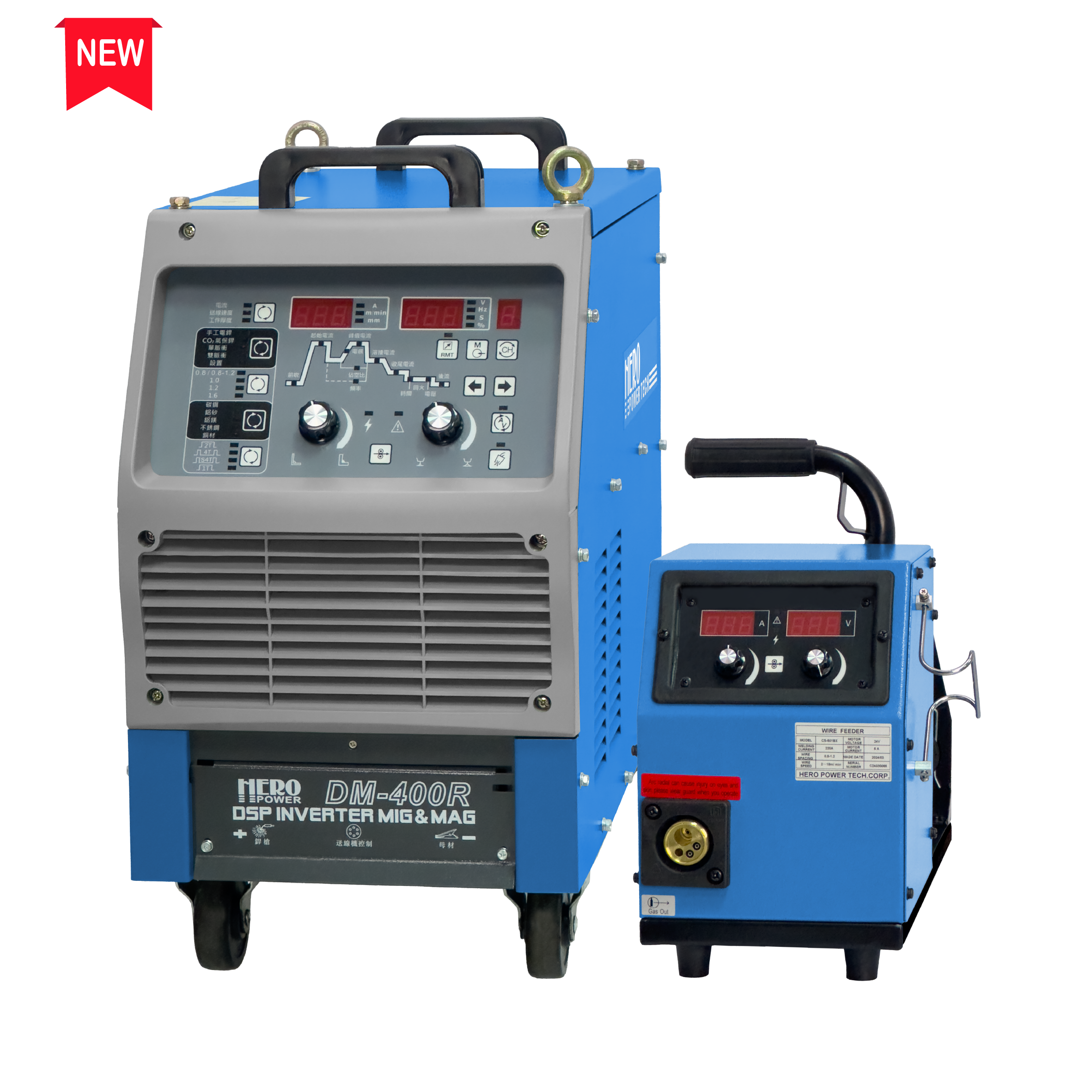

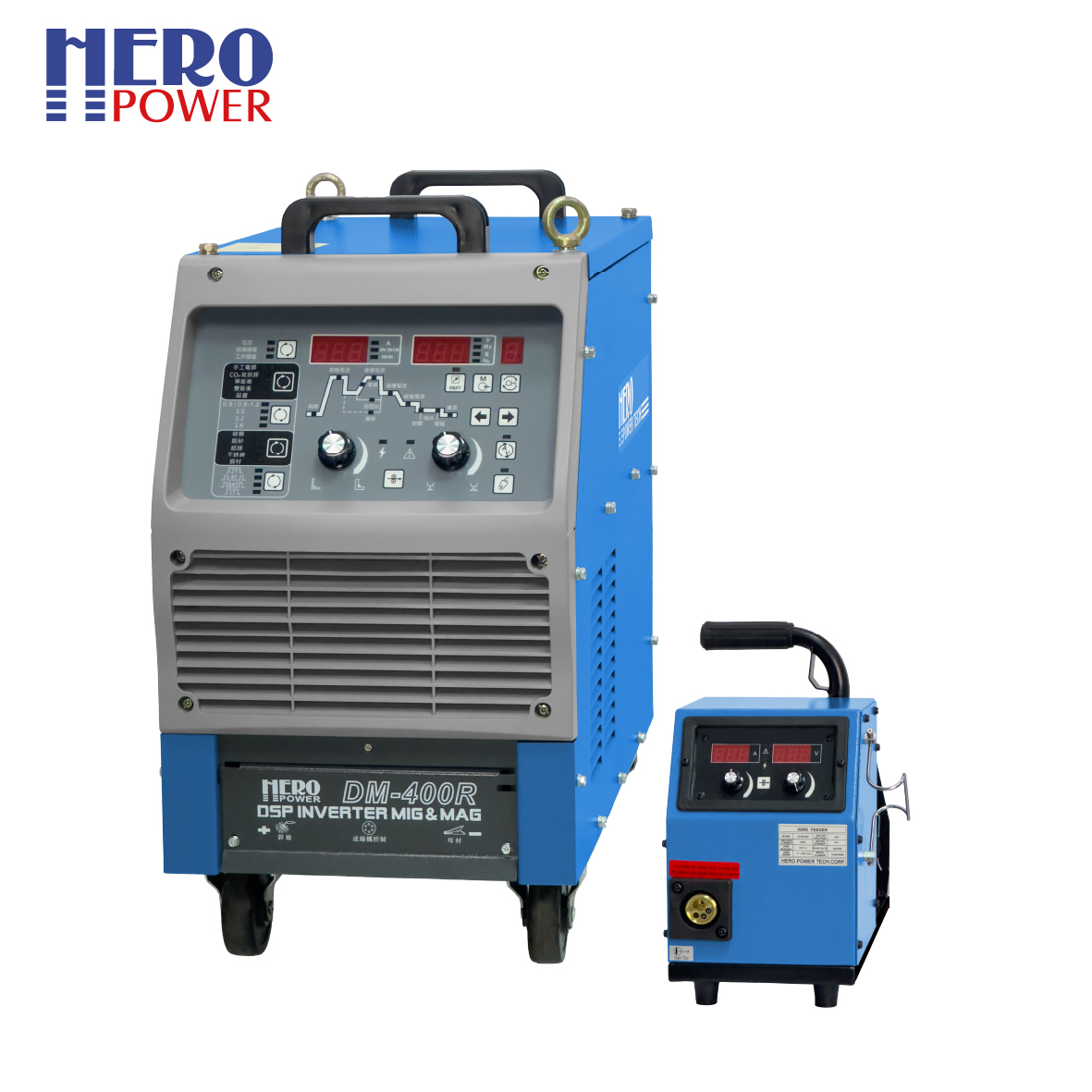

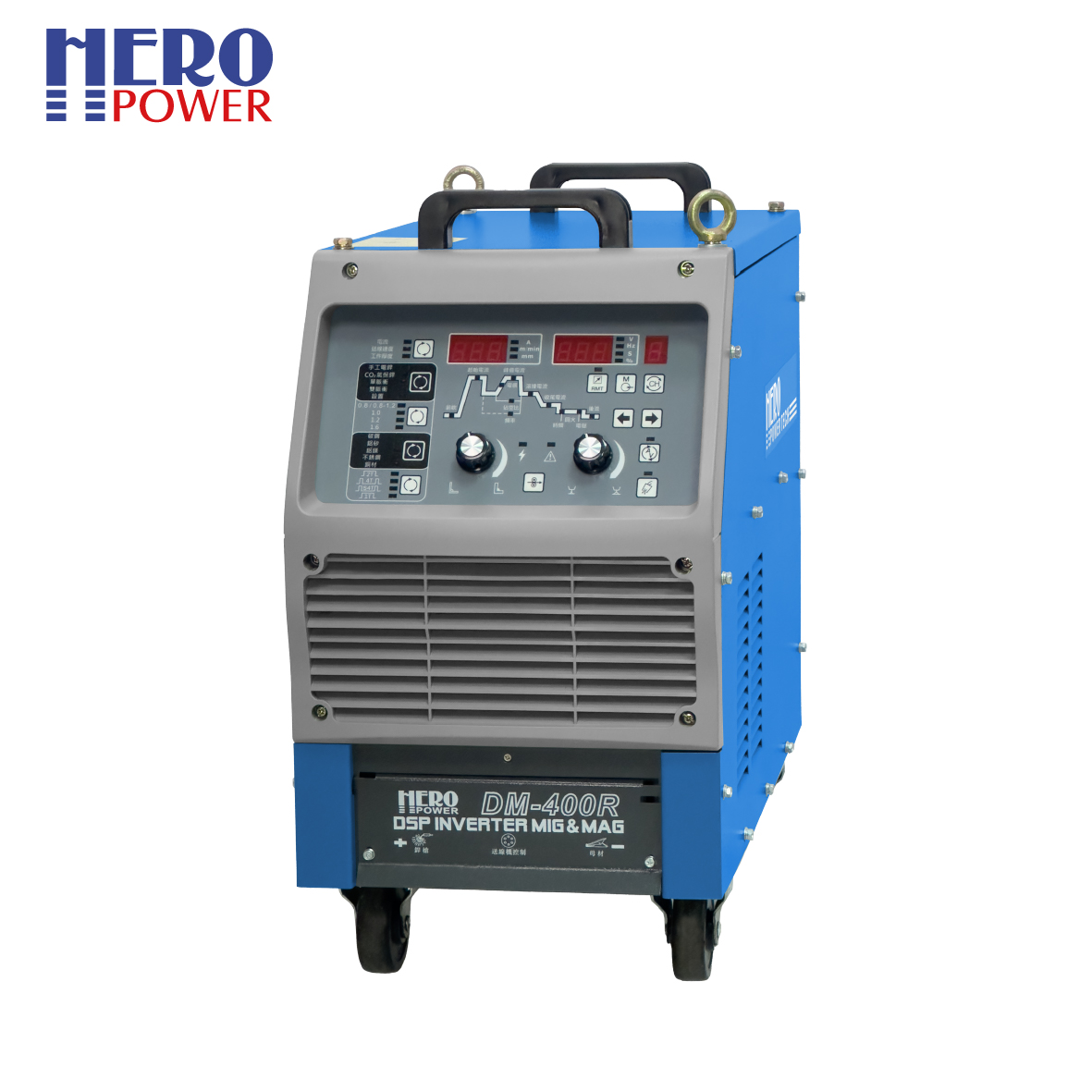

DM-400R
Multiple functions: pulse gas shielded
welding / double pulse gas shielded welding,
TIG & pulse welding, manual welding.
Can weld carbon steel, aluminum,
and other materials and wire diameter
from 0.8mm ~ 1.6mm.
Using digital control, parameter can be preset.
It can store 10 sets of welding parameters.
The welding process is divided into two steps,
four steps and special four steps.
Optional simulation communication module can
be integratedinto automatic welding
or robot welding equipment.
Specifications
| Input Power | V | 220/380/415, 3Φ | Duty cycle | - | 400A / 60% |
| 310A / 100% | |||||
| Input voltage range | % | ±15% | Mig wire | mm | Φ0.8,Φ1.0 Φ1.2,Φ1.6 |
| Input frequency | HZ | 50&60 | |||
| Rated input capacity | KVA | 20.5 | Pre flow time | Sec | 0~3.0 |
| KW | 16 | Post flow time | Sec | 0~20.0 | |
| Rated output | V | 34 | Suggested welding depth | mm | 0.8< |
| A | 400 | Insulation class | - | H | |
| Welding amperage range | A | 50~400 | Protection class | - | IP21S |
| Efficiency | % | 86 | Dimension (W*D*H) | mm | 300*610*535 |
| Open-circuit voltage | V | 70(+5,-2) | Net Weight | Kg | 45 |
