HERO POWER
Welding Equipment
Welding Equipment

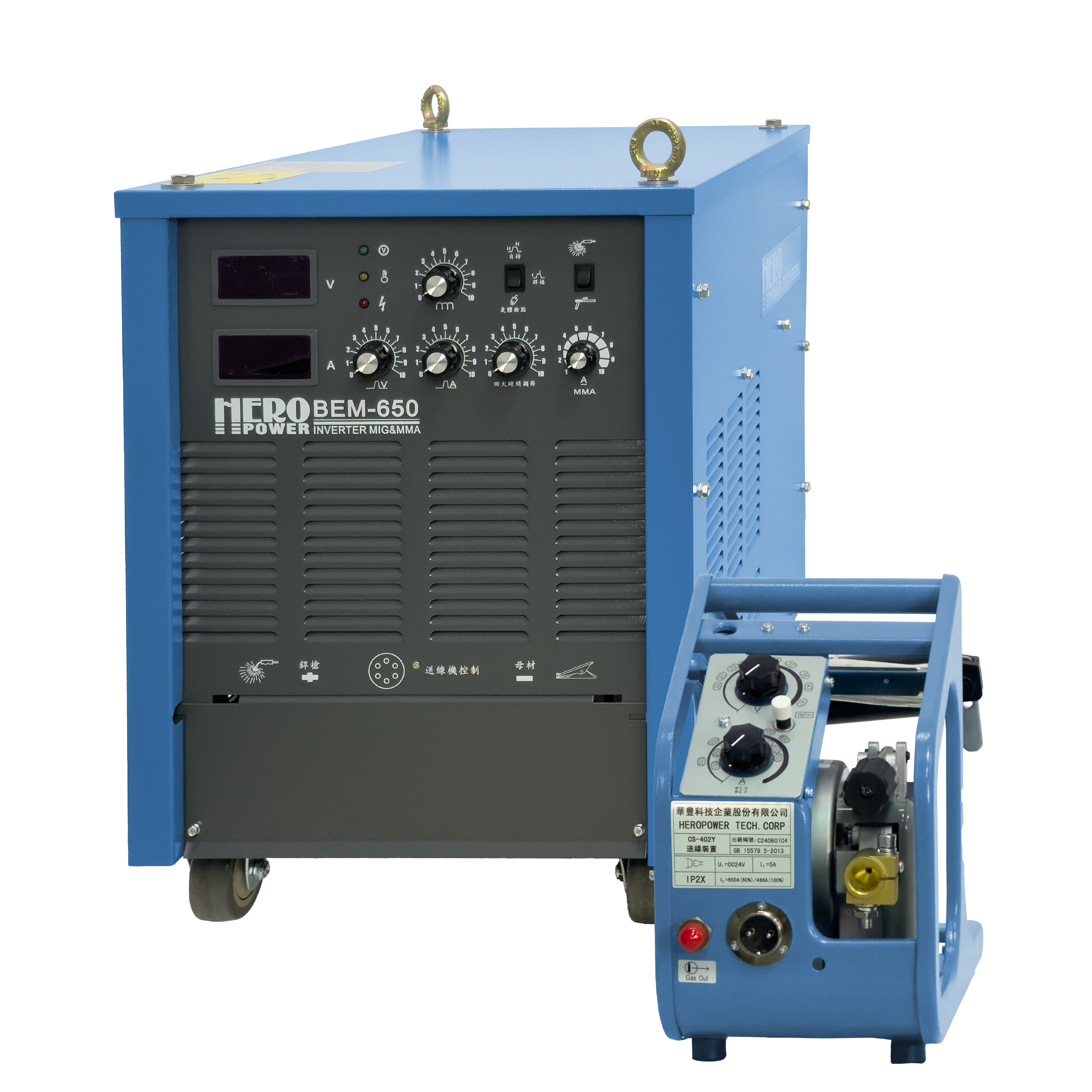

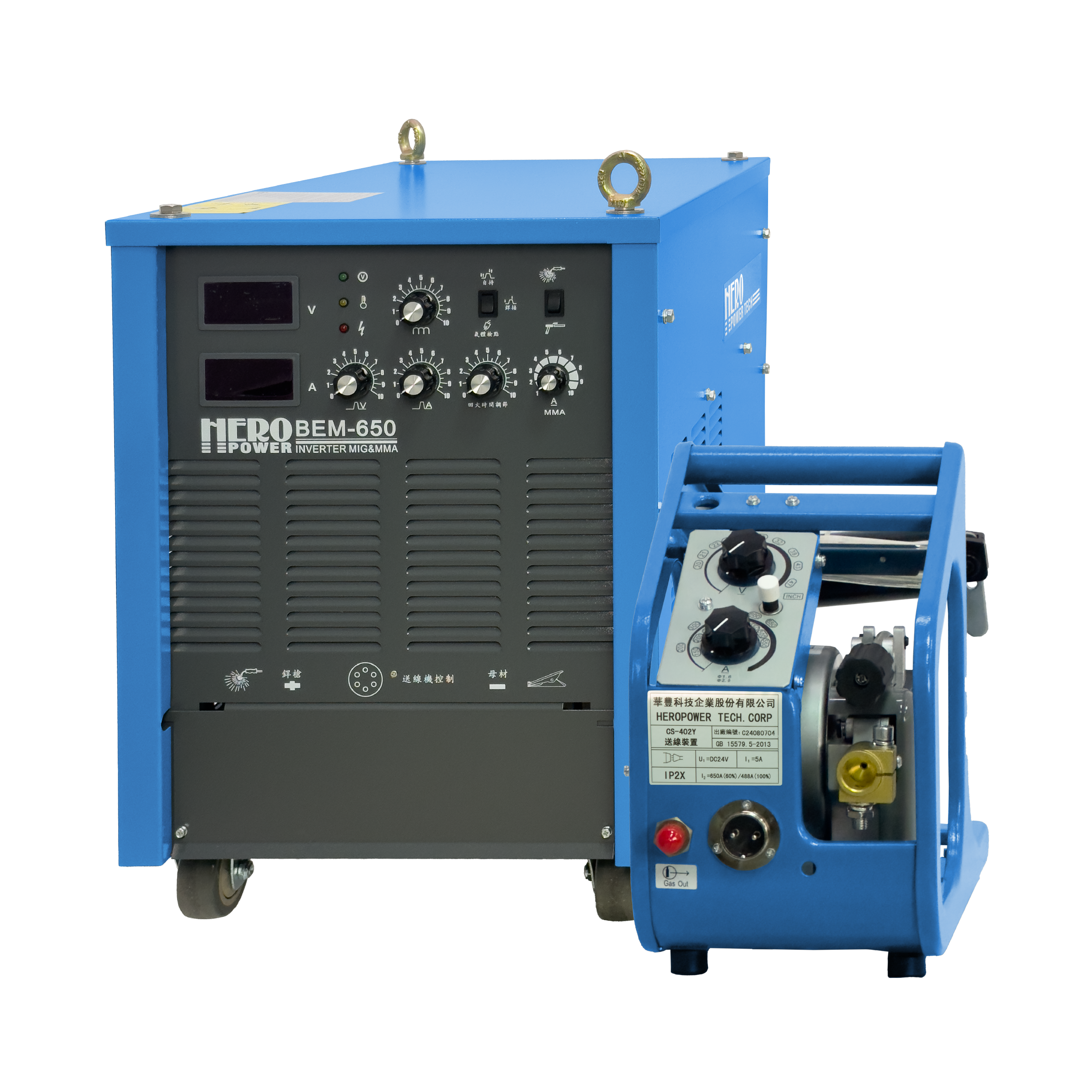

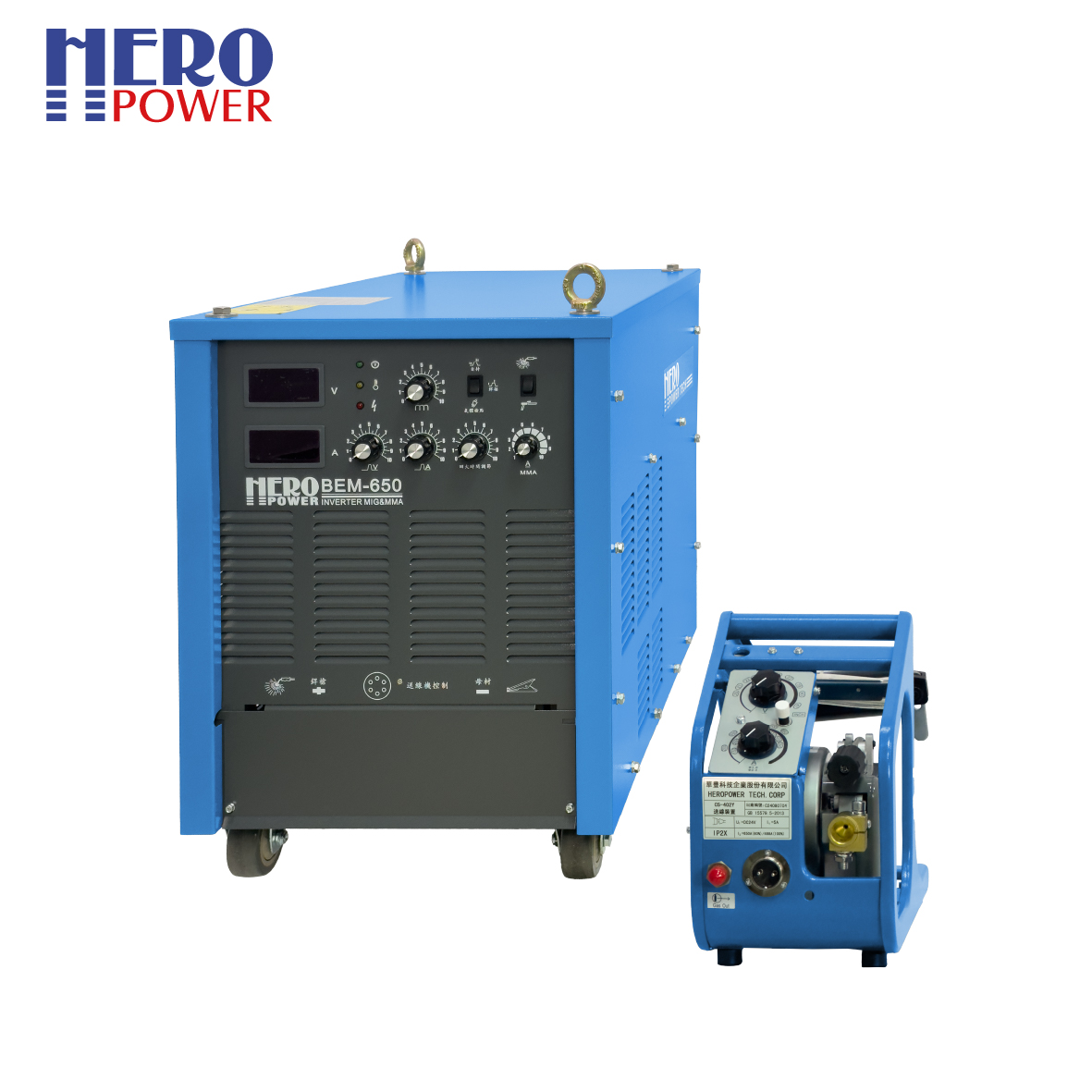

BEM-650
Inverter technology for energy-efficient
Thermal Overload Protection
Easy to set up and operate
Precision wire speed control for all medium and heavy industries welding applications
Inductance adjustment for precision control penetration
MMA function included
Gouging function included
Low spatter welding & high productivity

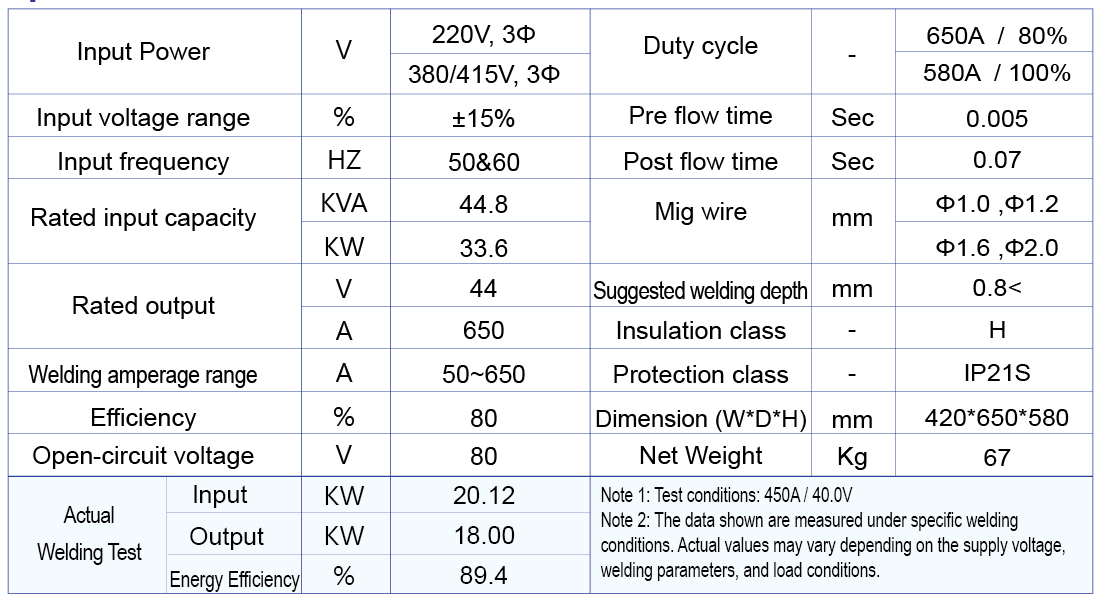

Specifications
| Input Power | V | 220, 3Φ | Duty cycle | - | 650A / 80% |
| 380/415, 3Φ | 580A / 100% | ||||
| Input voltage range | % | ±15% | Mig wire | mm | Φ1.0,Φ1.2 |
| Input frequency | HZ | 50&60 | Φ1.6,Φ2.0 | ||
| Rated input capacity | KVA | 44.8 | Pre flow time | Sec | 0.005 |
| KW | 33.6 | Post flow time | Sec | 0.07 | |
| Rated output | V | 44 | Suggested welding depth | mm | 0.8< |
| A | 650 | Insulation class | - | H | |
| Welding amperage range | A | 50~650 | Protection class | - | IP21S |
| Efficiency | % | 80 | Dimension (W*D*H) | mm | 420*650*580 |
| Open-circuit voltage | V | 80 | Net Weight | - | 67 |
