HERO POWER
Welding Equipment
Welding Equipment

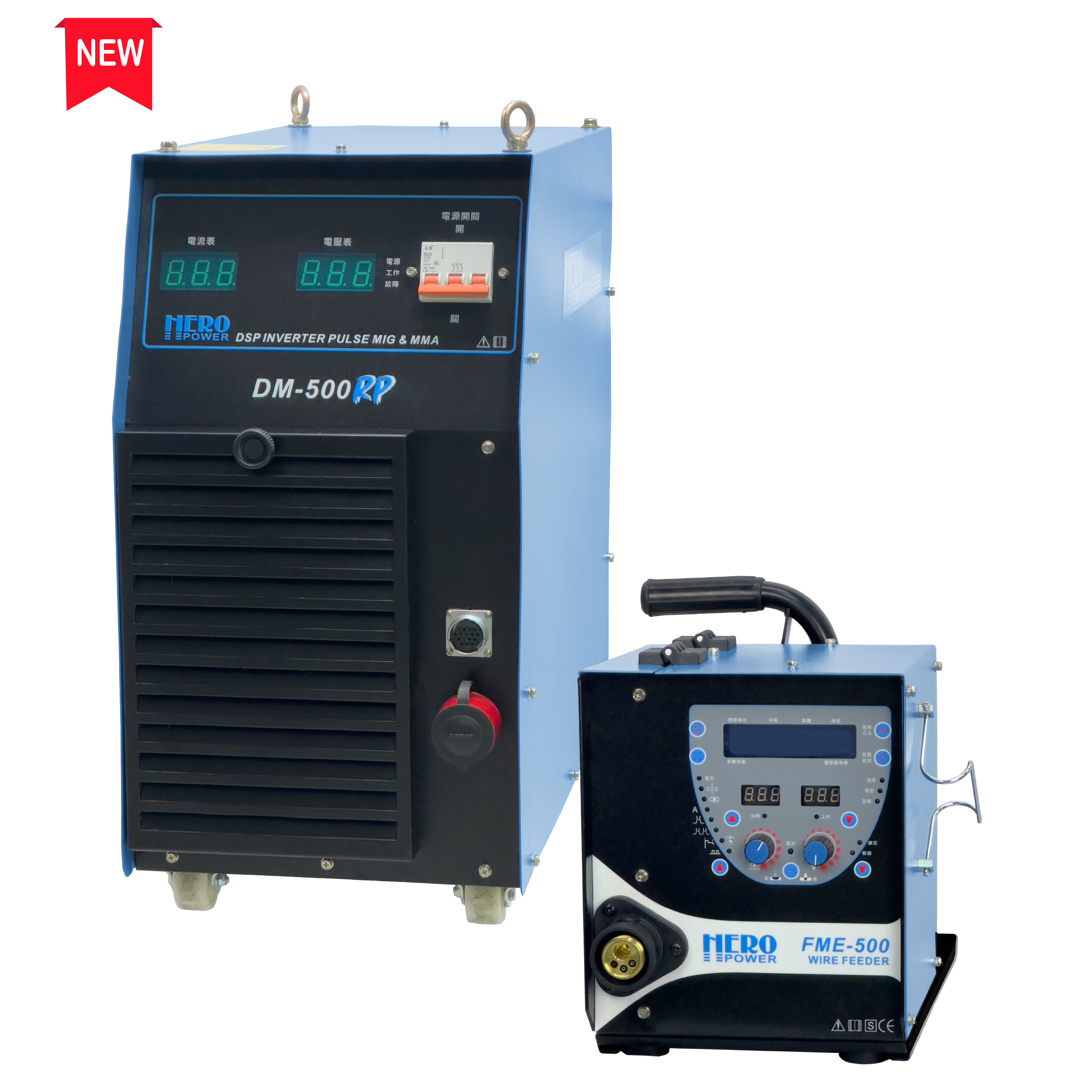

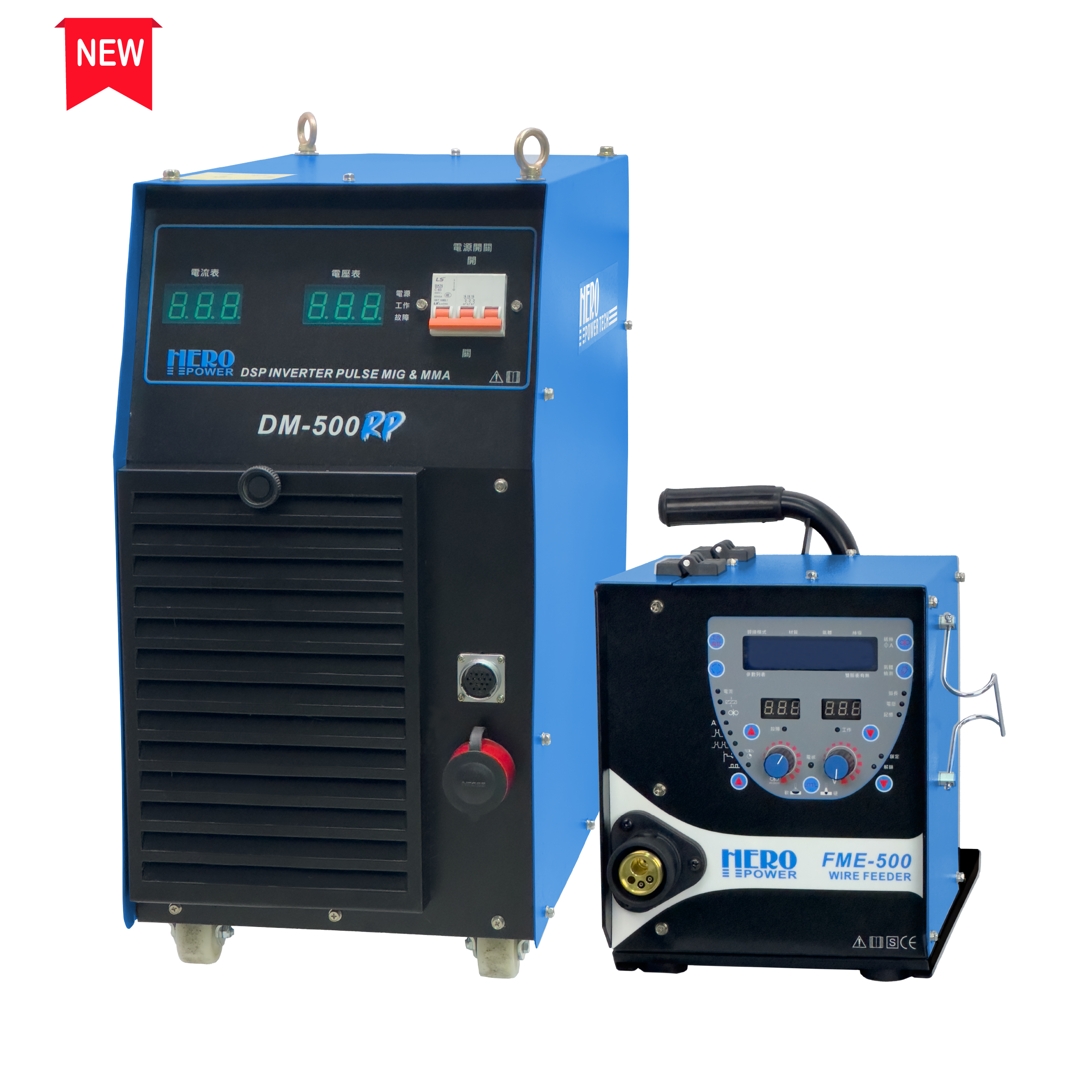

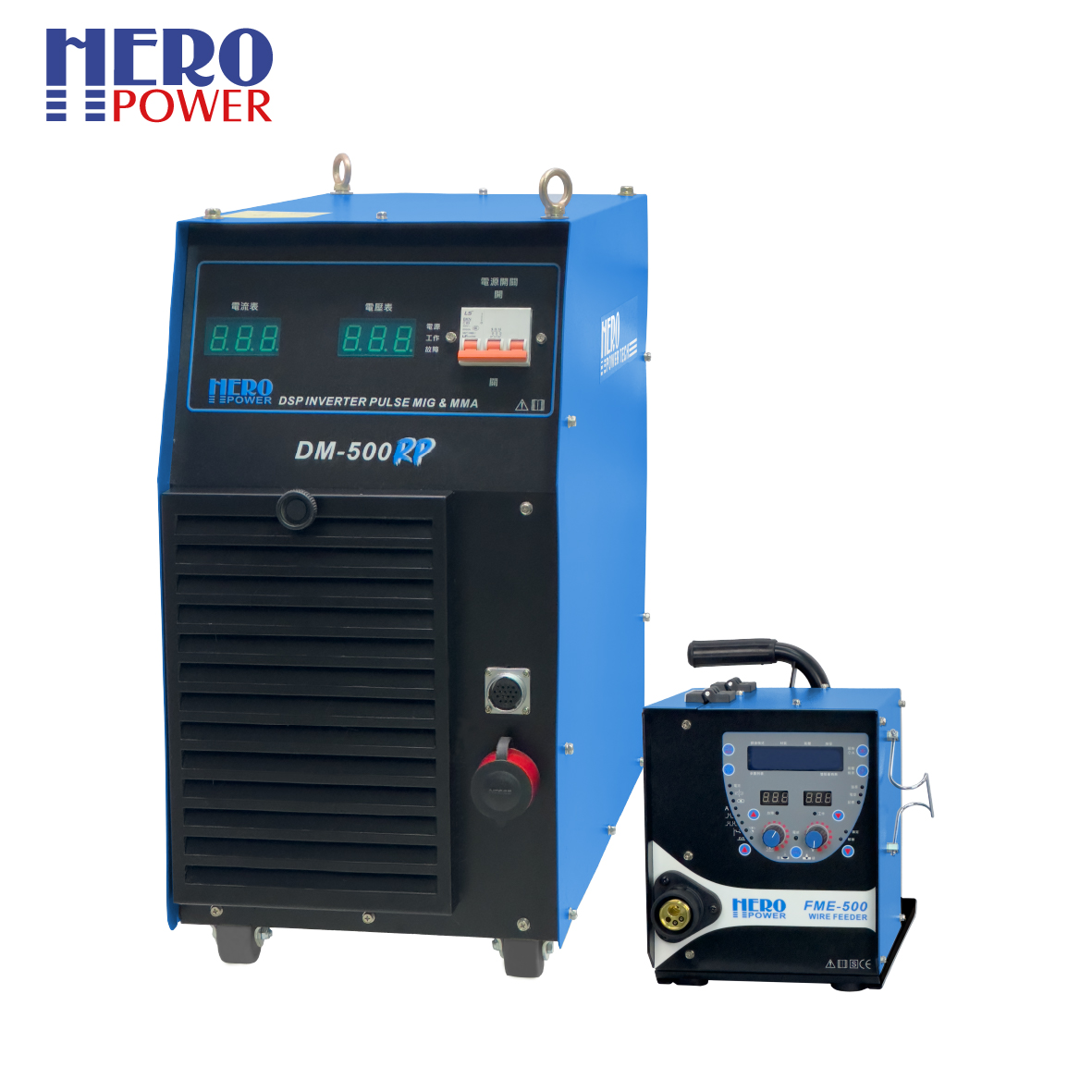

DM-500RP
Ultra-Low Spatter | High Speed | Multi-Material
Universal Welding for Aluminum & Steel.
- Advanced IGBT Inverter: Energy-efficient with minimized copper and iron loss.
- Multi-Material Mastery: One-stop solution for Aluminum, Stainless, and Carbon Steel.
- Integrated Multi-Process: Supports DC / Pulse / Double Pulse for versatile sheet metal tasks.
- 10-Channel Memory: Instant recall of parameters for rapid thickness/wire changes.
- Closed-Loop Feedback: Maintains stable arc even with extra-long torches.
- Perfect Root Pass: Engineered for precision root welding and gap bridging.
- Hyper-Arc Technology: Deep penetration for high-speed welding of medium-to-thick plates.

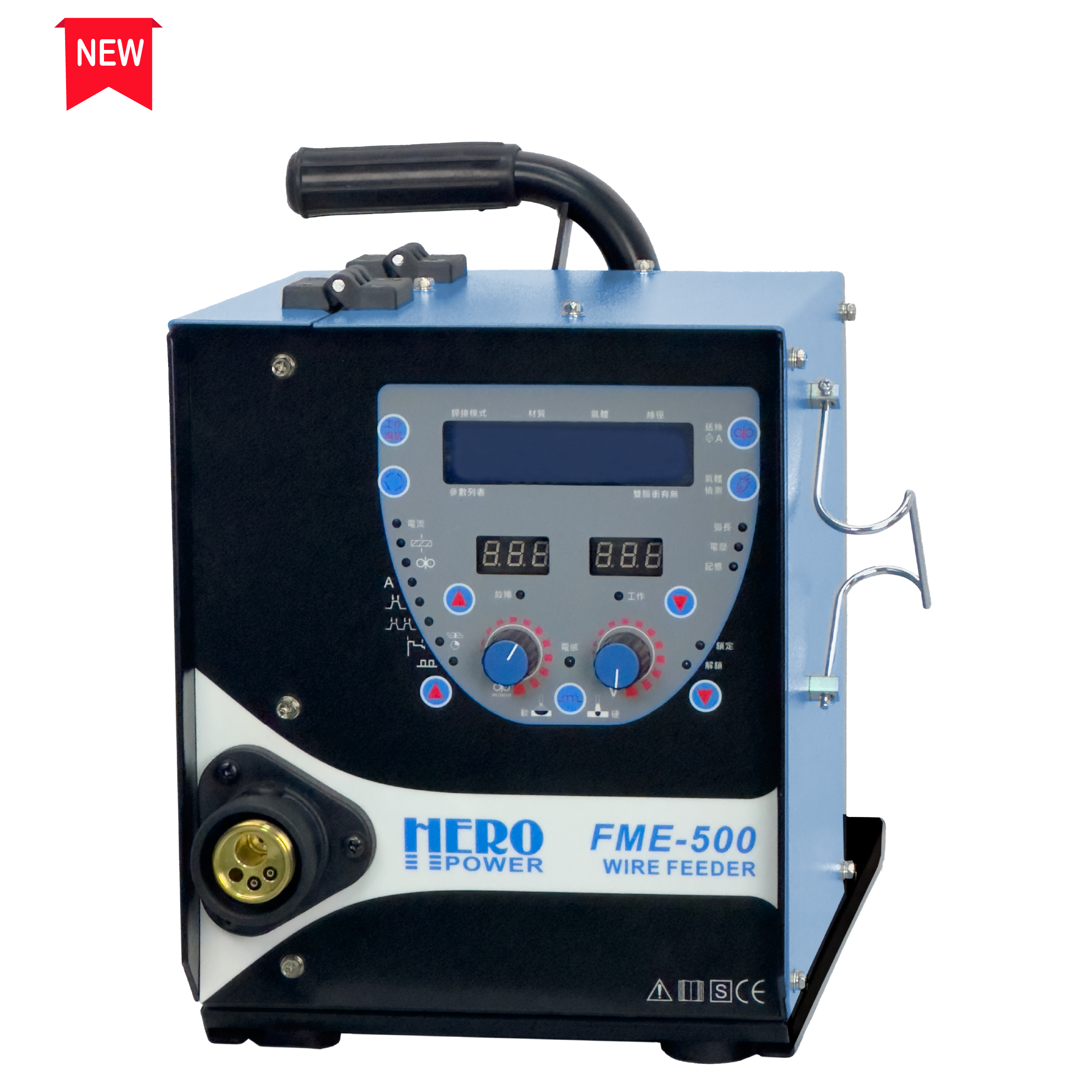

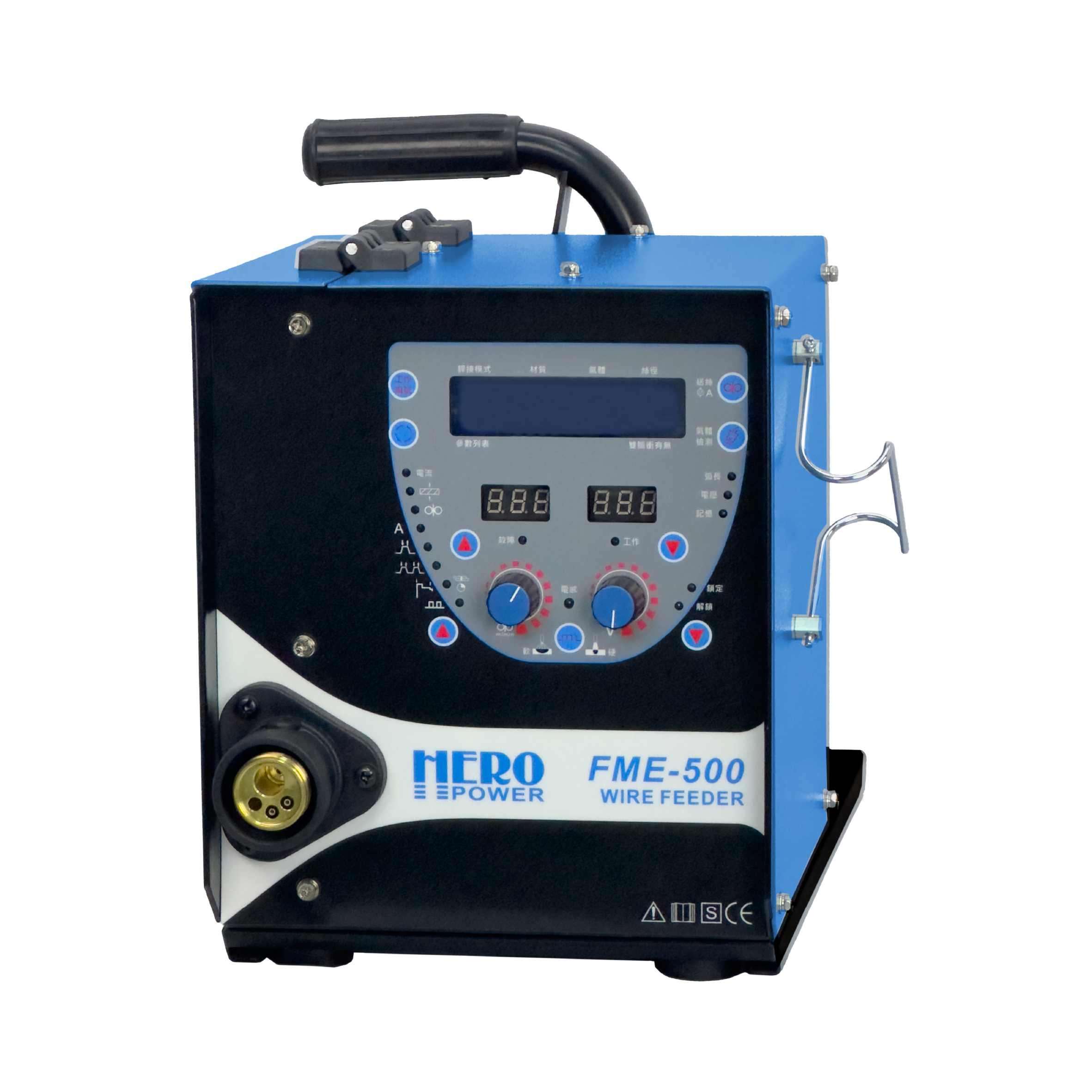

- Full Digital Control: Intuitive panel on wire feeder for seamless on-the-fly adjustment.
Specifications
| Input Power | V | 220, 3Φ | Duty cycle | - | 500A / 60% |
| 380/415, 3Φ | 385A / 100% | ||||
| Input voltage range | % | ±15% | Mig wire | mm | Φ0.8,Φ1.0 |
| Input frequency | HZ | 50&60 | Φ1.2,Φ1.6 | ||
| Rated input capacity | KVA | 28 | Pre flow time | Sec | 0.00~9.99 |
| KW | 22.6 | Post flow time | Sec | 0.00~9.99 | |
| Rated output | V | 39 | Suggested welding depth | mm | 0.8< |
| A | 500 | Insulation class | - | H | |
| Welding amperage range | A | 20~500 | Protection class | - | IP21S |
| Efficiency | % | 82 | Dimension (W*D*H) | mm | 307*590*600 |
| Open-circuit voltage | V | 70 | Net Weight | - | 50.6 |
