Rectifier
.png "Digital Forward Pulse ABP_02")
Small size and lightweight
Soft-start design & Intelligent control
High presicion
Quick response
High energy efficiency
Forced air cooling
Low ripple current
Independent current signal output
Abnormal light display
Over temperature & current display
High/low voltage and current display

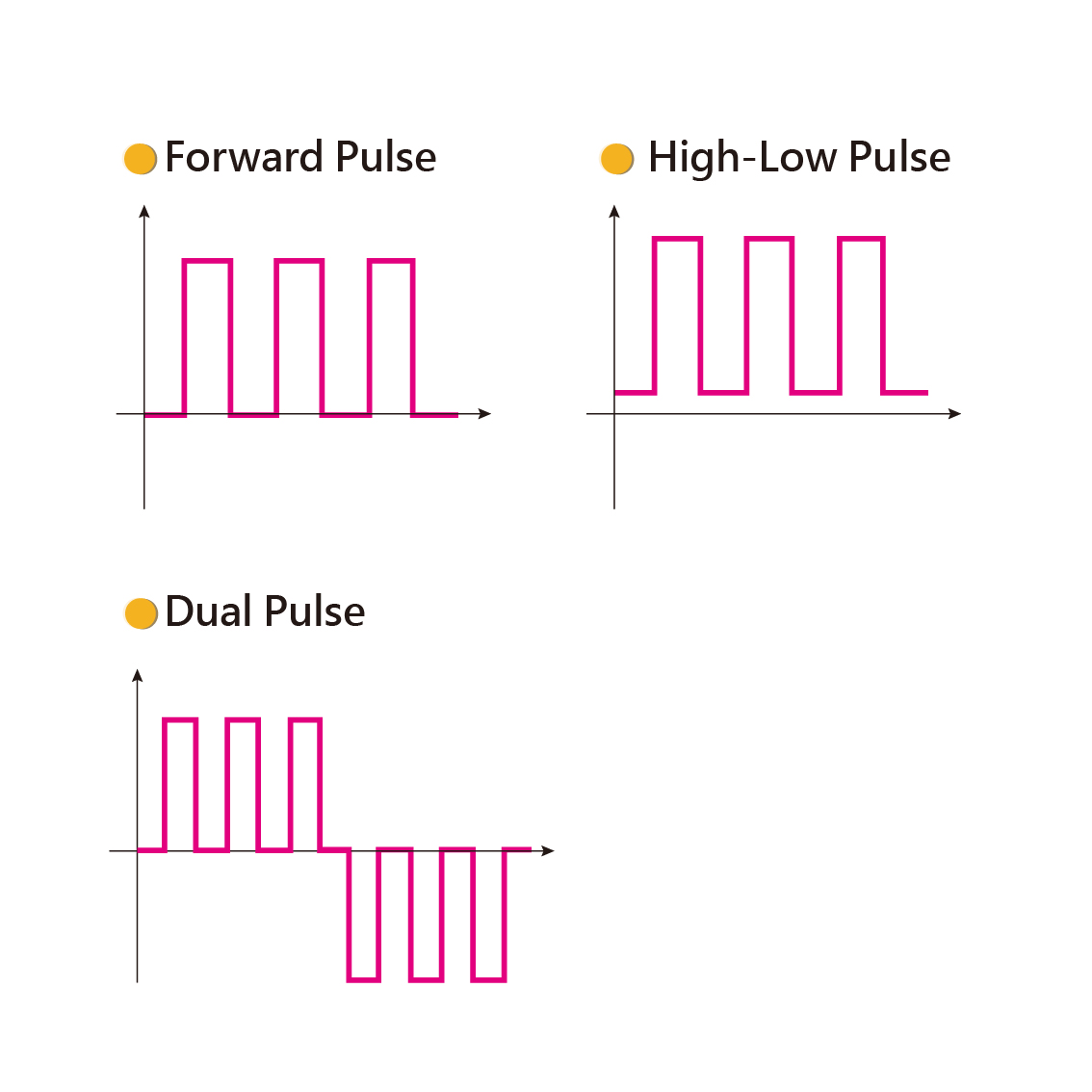

Multi-pulse mode function
Ampere-hour calculation(automatic addition of potions)
99 groups of programs for job selection
C.C & C.V design
2 sets of AB surface current can be set in conjunction
Can be connected to RS422/RS485/PLC
|
Item |
Specification |
|
Rated input voltage |
1/3Φ-220V,3Φ-380V/440V, ±15% |
|
Input frequency |
47-63HZ |
|
Output voltage noise and ripple |
<0.1% |
|
Output current ripple |
<1% |
|
Line regulation rate |
0.1% of maximum output voltage/current |
|
Load regulation rate |
0.1% of maximum output voltage/current |
|
Meter accuracy |
±(1% +1 digit) of maximum output voltage / current |
|
Analog program setting accuracy |
1% of maximum output voltage/current |
|
Current display meter |
Four-digits display |
|
Output specification |
5A/12V~600A/5V,20A/6V~75A/40V |
|
Can select exterior size Dimension (W*L*H) |
3U Cabinet: 620*450*135mm (illustrated dimensions) |
■The above table is the standard model specifications. Customized design specifications, functions, etc., please contact us.
