ABD Rectifier
.png "ABD Rectifier_02")
C.C & C.V design
Small size and light weight
Software startup design
Intelligent automatic control
Current period adjustable & Current continuous wave low
Fast reaction speed、High accuracy
High power efficiency

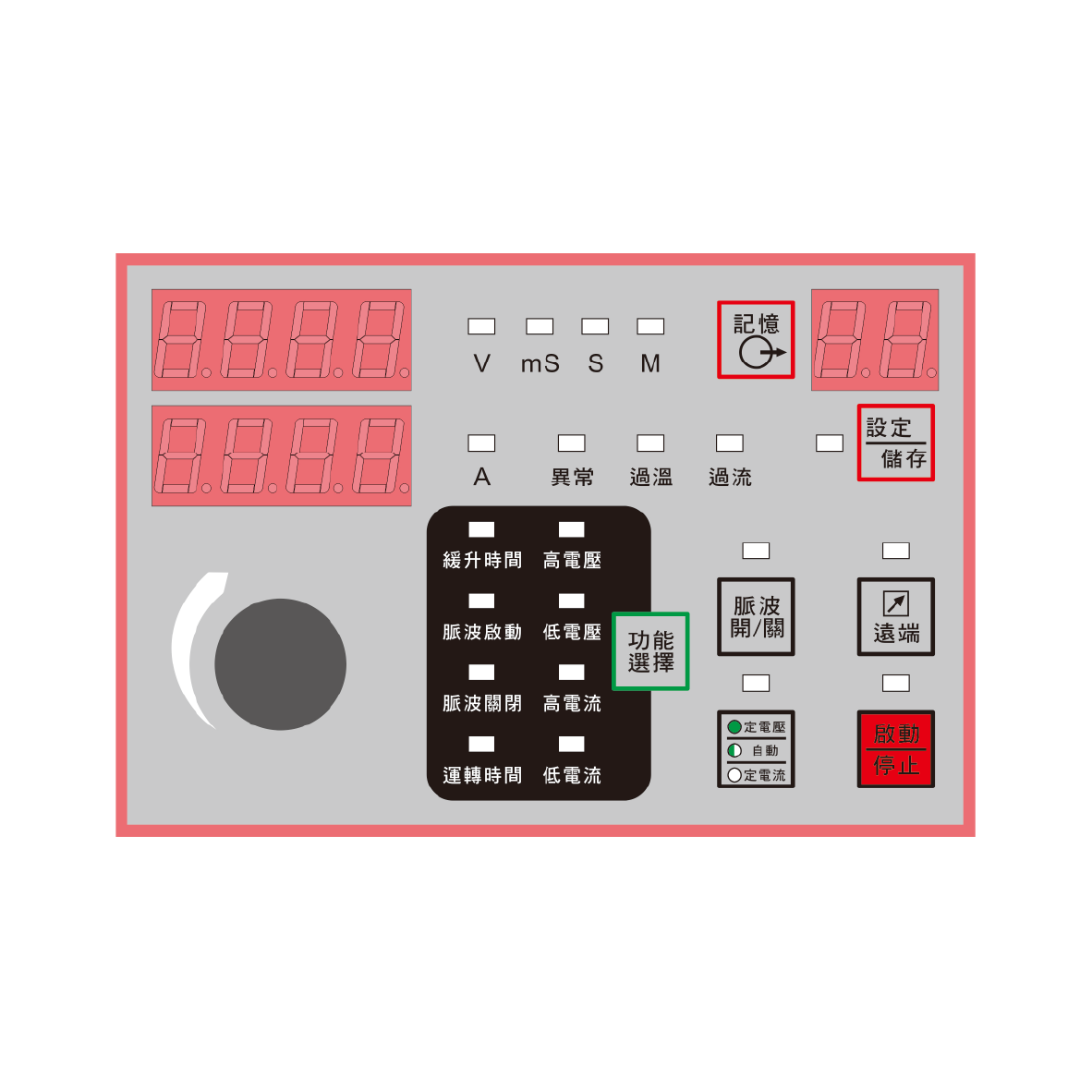

Abnormal light number display
Overtemperature and overcurrent display
High and low voltage display
High and low current display
99 group memory mode

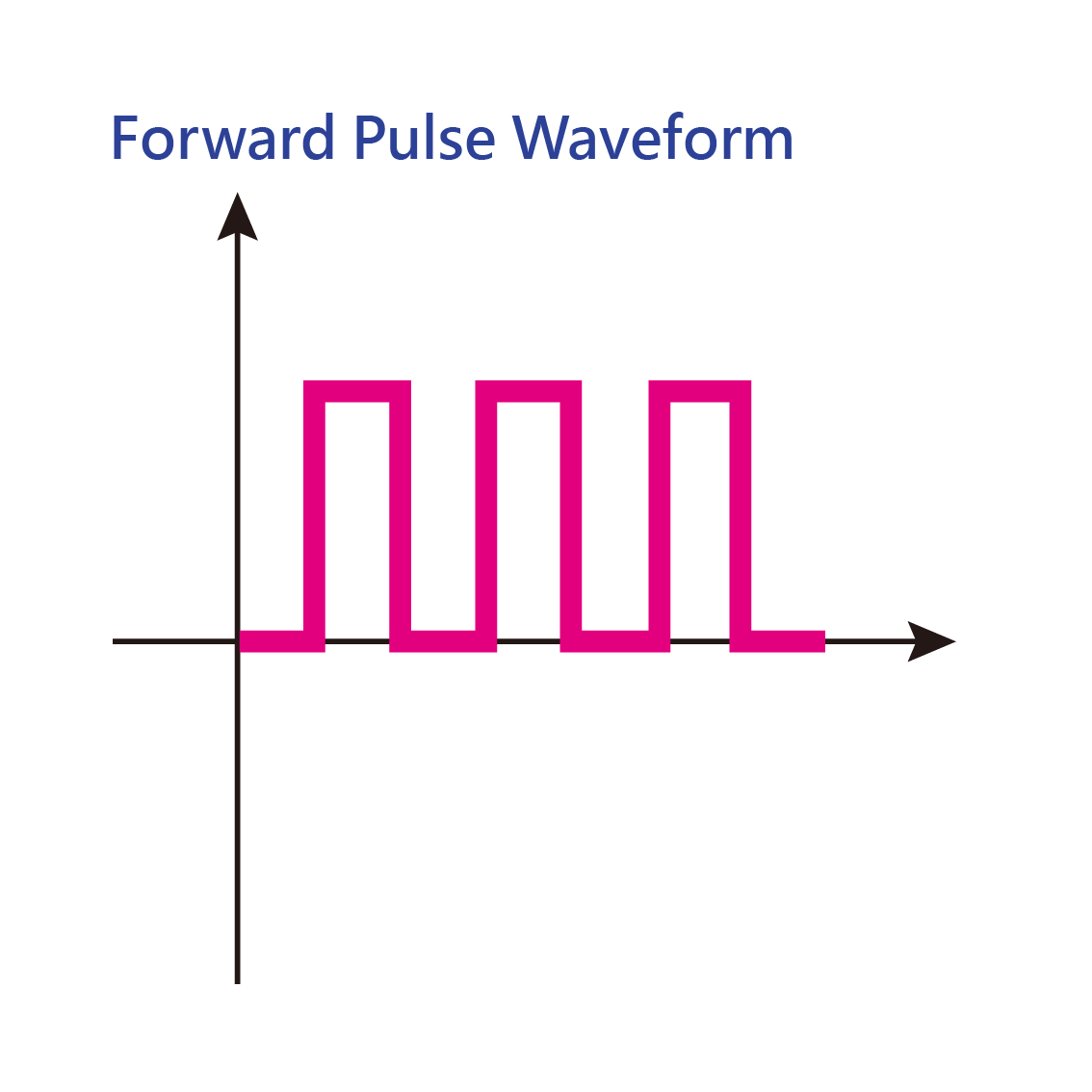

Pulse wave mode function
Positive and negative pulse function
Constant voltage and current

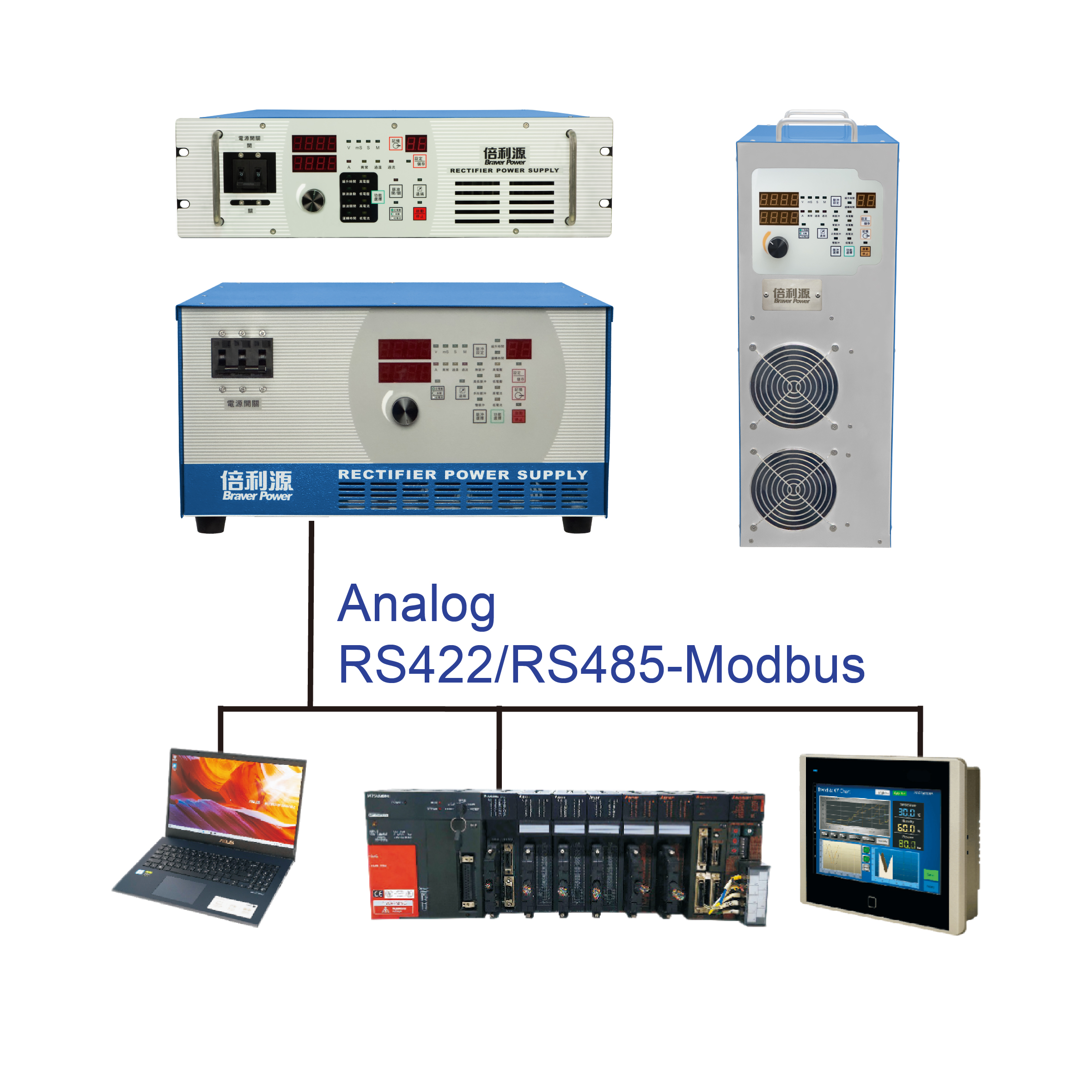

Can connect computer RS-485 / PLC
Multi machine synchronous operation
Automatic mode
Specifications
| Item | Specification |
| Rated input voltage | 1/3Φ-220V,3Φ-380V/440V, ±15% |
| Input frequency | 47-63HZ |
| Output voltage noise and ripple | <0.1% |
| Output current ripple | <1% |
| Line regulation rate | 0.1% of maximum output voltage/current |
| Load regulation rate | 0.1% of maximum output voltage/current |
| Meter accuracy | ±(1% +1 digit) of maximum output voltage / current |
| Analog program setting accuracy | 1% of maximum output voltage/current |
| Current display meter | Four-digits display |
| Output specification | 5A/12V~600A/5V,20A/6V~75A/40V |
|
Can select exterior size Dimension (W*L*H) |
3U Cabinet: 620*450*135mm (illustrated dimensions) 3U+ Height: 555*405*225mm Vertical: 200*500*530mm |
■The above table is the standard model specifications. Customized design specifications, functions, etc., please contact us.
