Rectifier
Rectifier
ABU series cabinet type
.png "ABU series cabinet type_02")
Small size and lightweight
High presicion
Intelligent control Soft-start design
Quick response
Low ripple current
Forced air cooling&High energy efficiency
Inverter technology for energy-efficient

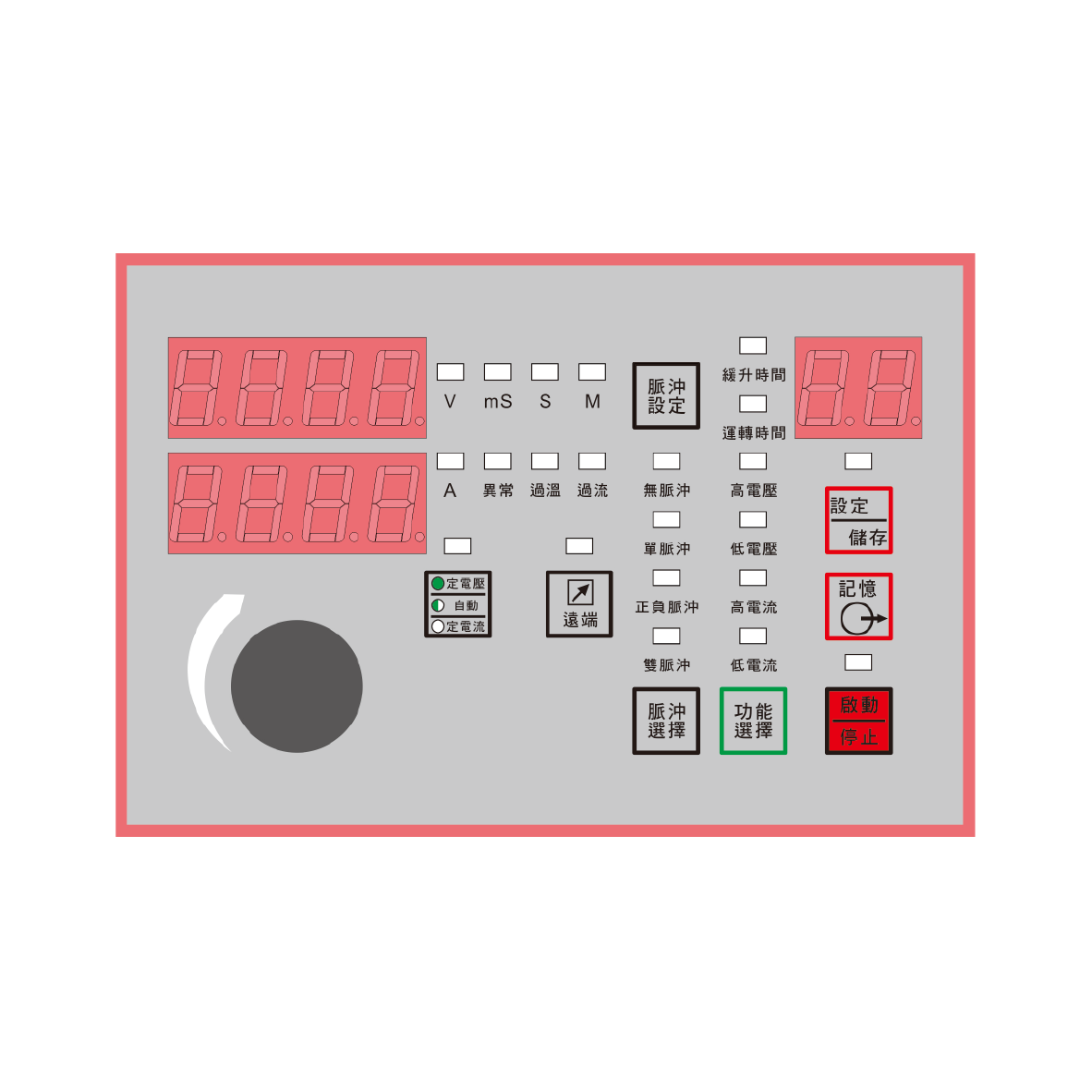

Abnormal light display
Over temperature & current display
High/low voltage and current display
99 groups of programs for job selection
Programmable operation with 10-stage change of output current
C.C & C.V design
Can be connected to RS-485/PLC
Suitable for multi-machine synchronous operation
Specifications
| Item | Specification |
| Rated input voltage | 220Vac+15%-10% |
| Phase | 3Φ |
| Frequency | 47~63Hz |
| Rated input power | 8.75KVA |
| Average rated input current | 28Aac+15%-10% |
| Output voltage range | 0~25Vdc |
| Output current range | 0~250Adc |
| Positive current | 250A |
| Negative current | 250A |
| C.C control accuracy | ±3.0% |
| High and low single pulse | √ |
| Positive and negative pulse | √ |
| Positive and negative double pulse | √ |
| Pulse mode switching | High and low single pulse / Positive and negative pulse / Positive and negative double pulse |
| Positive current time | 1~200ms |
| Negative current time | 1~200ms |
|
Can select exterior size Dimension (W*D*H) |
3U Cabinet: 620*450*135mm (illustrated dimensions) 3U+ Height: 555*405*225mm Vertical: 200*500*530mm |
■The above table is the standard model specifications. Customized design specifications, functions, etc., please contact us.
