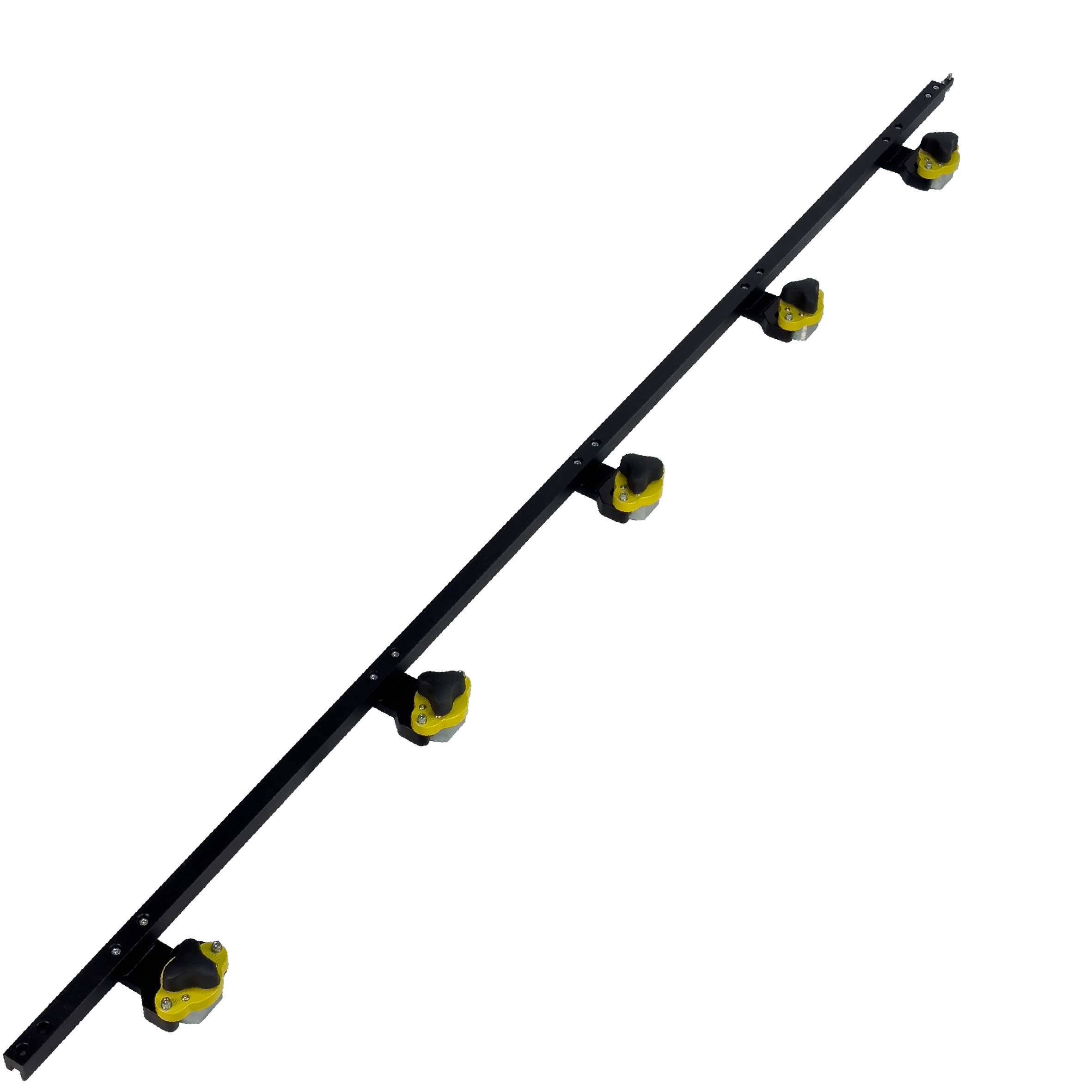

Soft Tracks
The automatic welding carriage, when equipped with flexible rails and guide wheel components, can greatly extend its application range.
It supports various welding types, including flat butt welding, vertical butt welding, horizontal butt welding, and curved surface welding.
The track adopts a modular splicing design, making it convenient for long seam welding operations.
The track body is made of flexible nylon material, allowing it to be bent to accommodate curved surfaces and straight flat paths.
High-performance switchable magnets are used to provide strong magnetic adhesion, meeting the requirements of various welding positions and applications.
Specifications
| Applicable models | HC-5 、HC5-1K 、HC5-6 |
| Applicable workpieces | iron workpieces, corner welds, butt welds |
| Adsorption force | Single magnet ≥ 45 kg (steel plate test) |
| Track body material | Nylon |
| Magnetic mounting base material | cast aluminum alloy |
| Switch magnet material | steel + neodymium-iron-boron + hard aluminum |
| Track length | 1.5 meters (can be tiled) |
| Track weight | 2 kg per piece |
| Magnet count | 5 |
