HC-5
 250423.png "HC-5_01")
Brushless DC Motor with PWM and Encoder for Precise Control
Low-voltage DC Power Supply – No Risk of Electric Leakage or Safety Hazards
Durable Lithium Battery – Cordless and Portable for Use Anywhere
- High-performance magnetic increases the reliability of profiling welding and also ensure a smooth operation.
- It has limit stop function and one worker can operate multiple units at the same time.
- It is satisfied special process work-pieces, the welding distance and non-welding distance can be adjusted.
- This carriage has a magnetic adsorption clutch handle and it is easy to adjust and install.

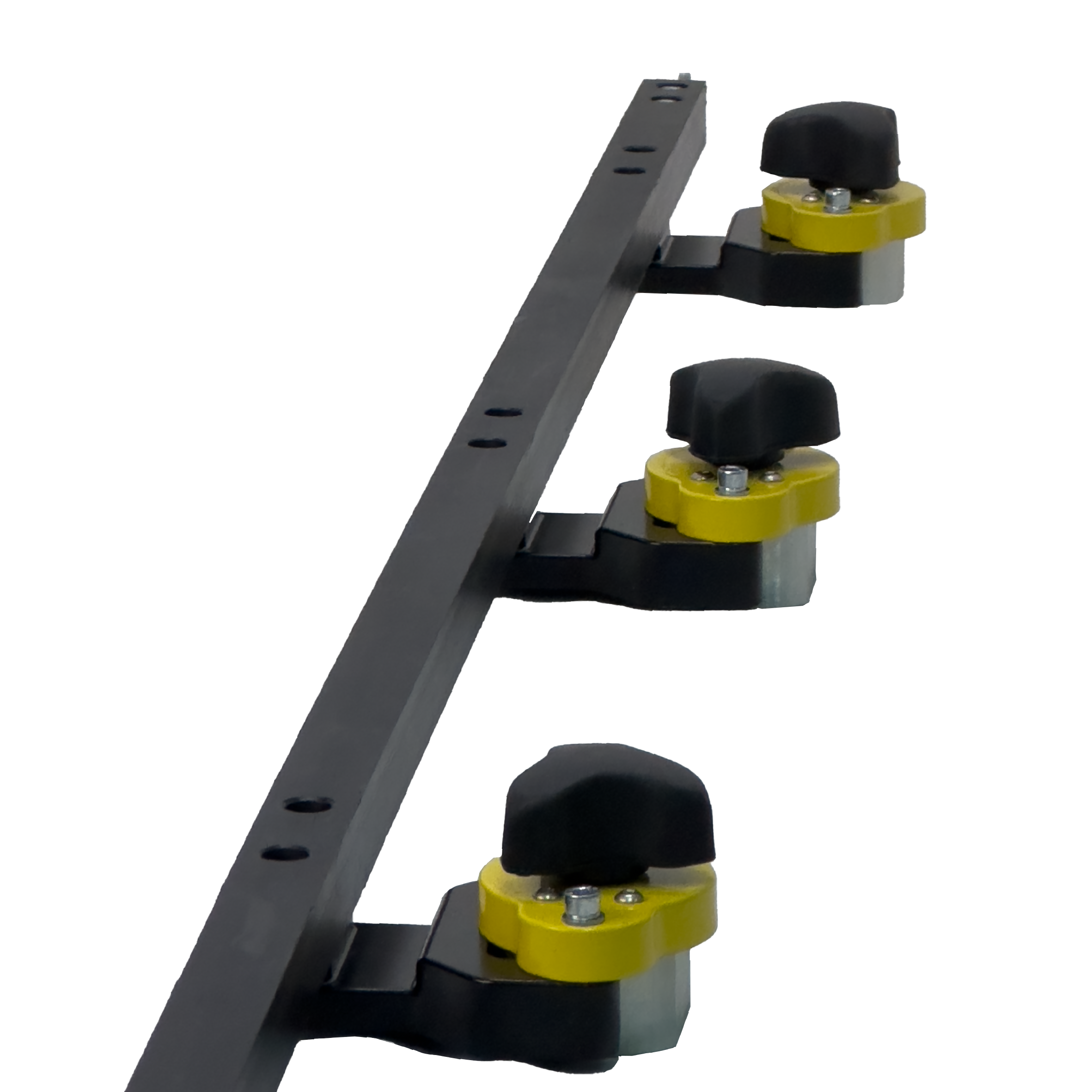

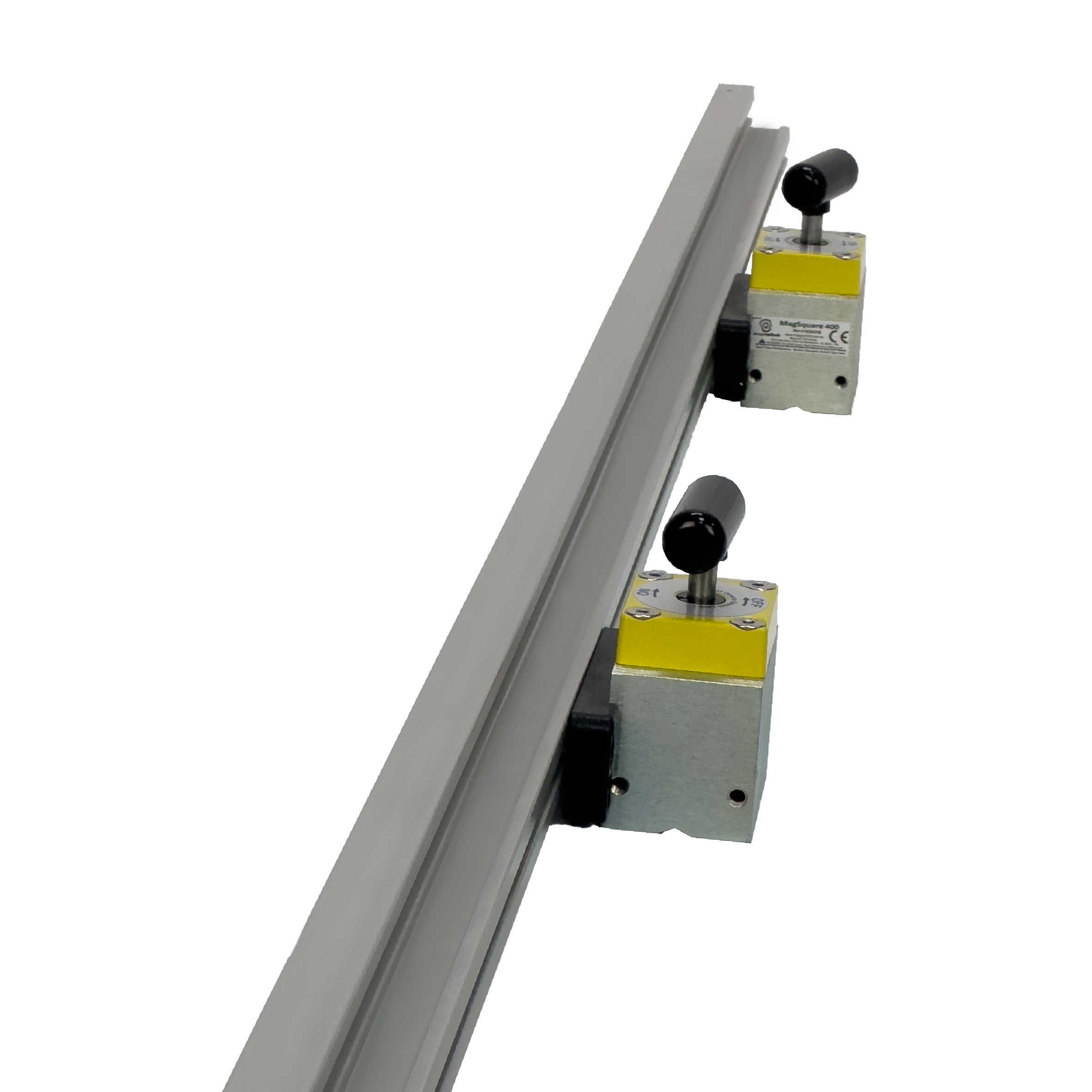

- Fitted with rail, it can complete the flat butt weaving welding.
Specifications
|
Input Voltage |

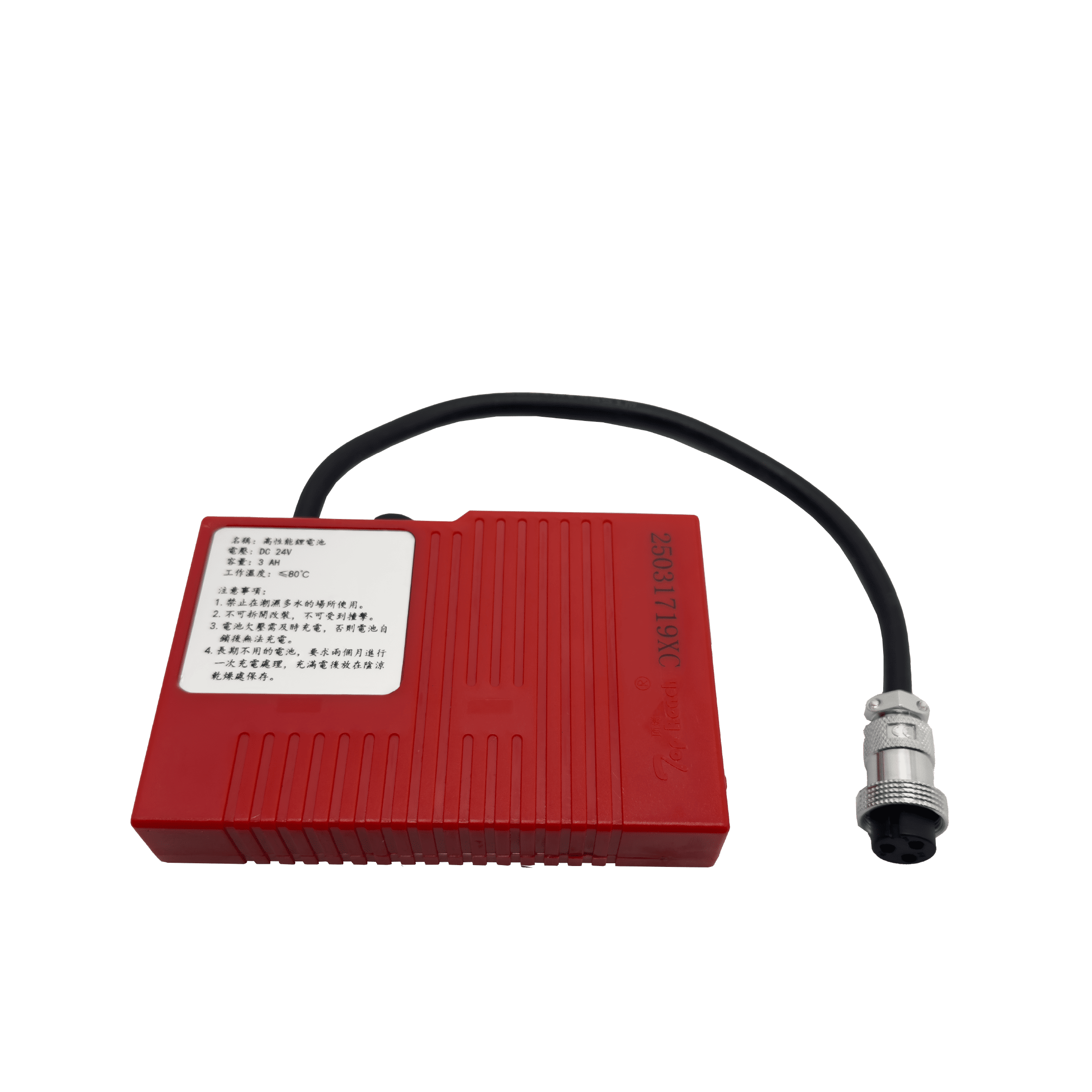

24V / 3AH Lithium Battery |
|
Drive Mode |
Four Wheel Drive |
|
Traction Power |
25kg |
|
Travel Speed |
35~930(mm/min) |
|
Travel Distance |

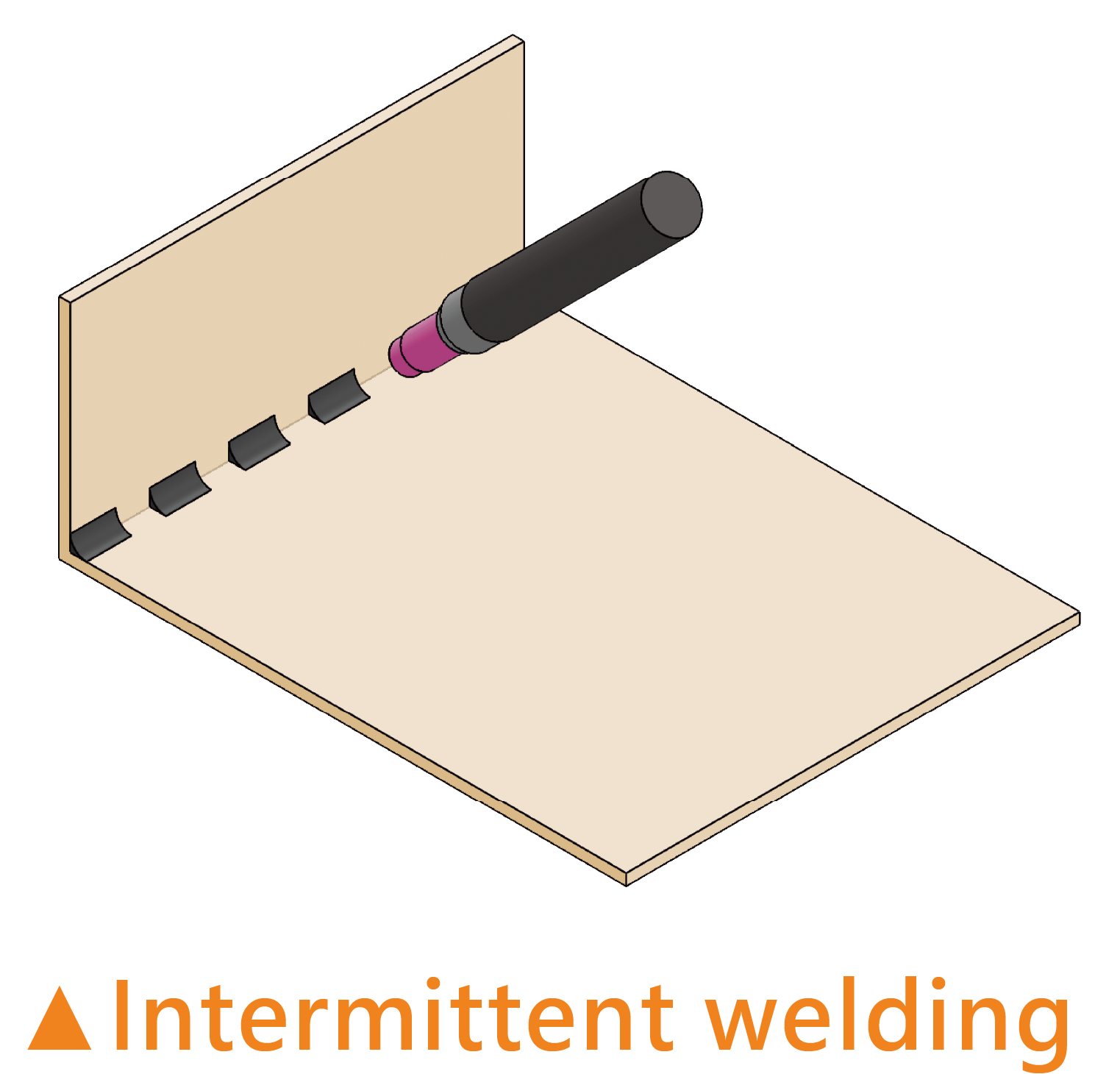

Welding Distance 0~999mm Non Welding Distance 0~999mm |
|
Arc Suppression Time |
0~2.5s |
|

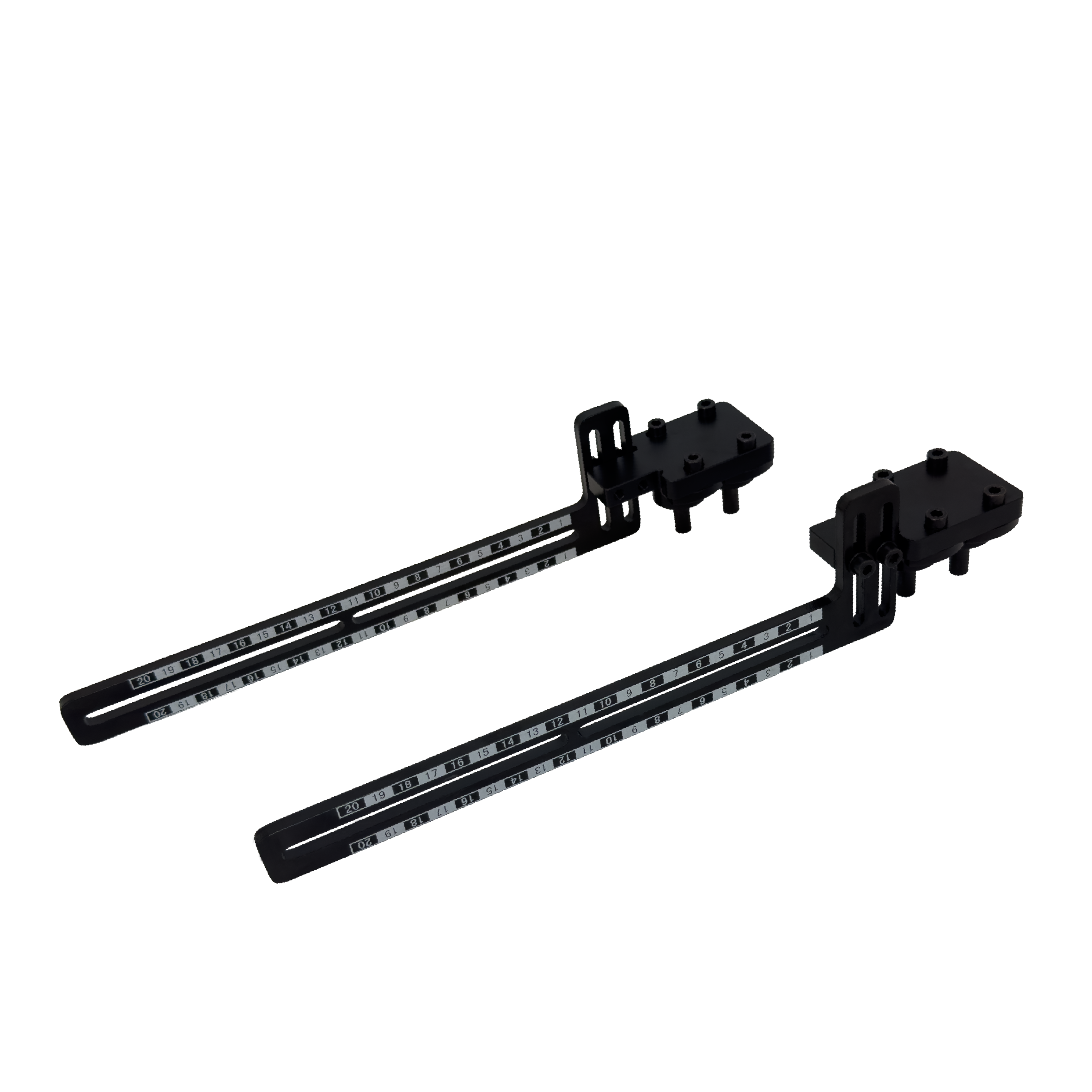

Track Method |
Guide Wheel |
|
Guide Wheel Height |
3 Options (10、20、38mm) |
|
Torch |
Bend Torch / Straight Torch |
|
Torch Position Adjustment |
Horizontal Angle 40°~55° Up / Down & Left / Right Movement 40mm |
|
Unweldable Distance |
Front 137mm、Rear 137mm |
|
Automatic Stop Function |
Front and rear limit devices |
|
Dimensions (W*D*H) |
260*280*265mm |
|
Weight |
8.6kg |
