Brushless DC Motor with PWM and Encoder for Precise Control
Low-voltage DC Power Supply – No Risk of Electric Leakage or Safety Hazards
Durable Lithium Battery – Cordless and Portable for Use Anywhere

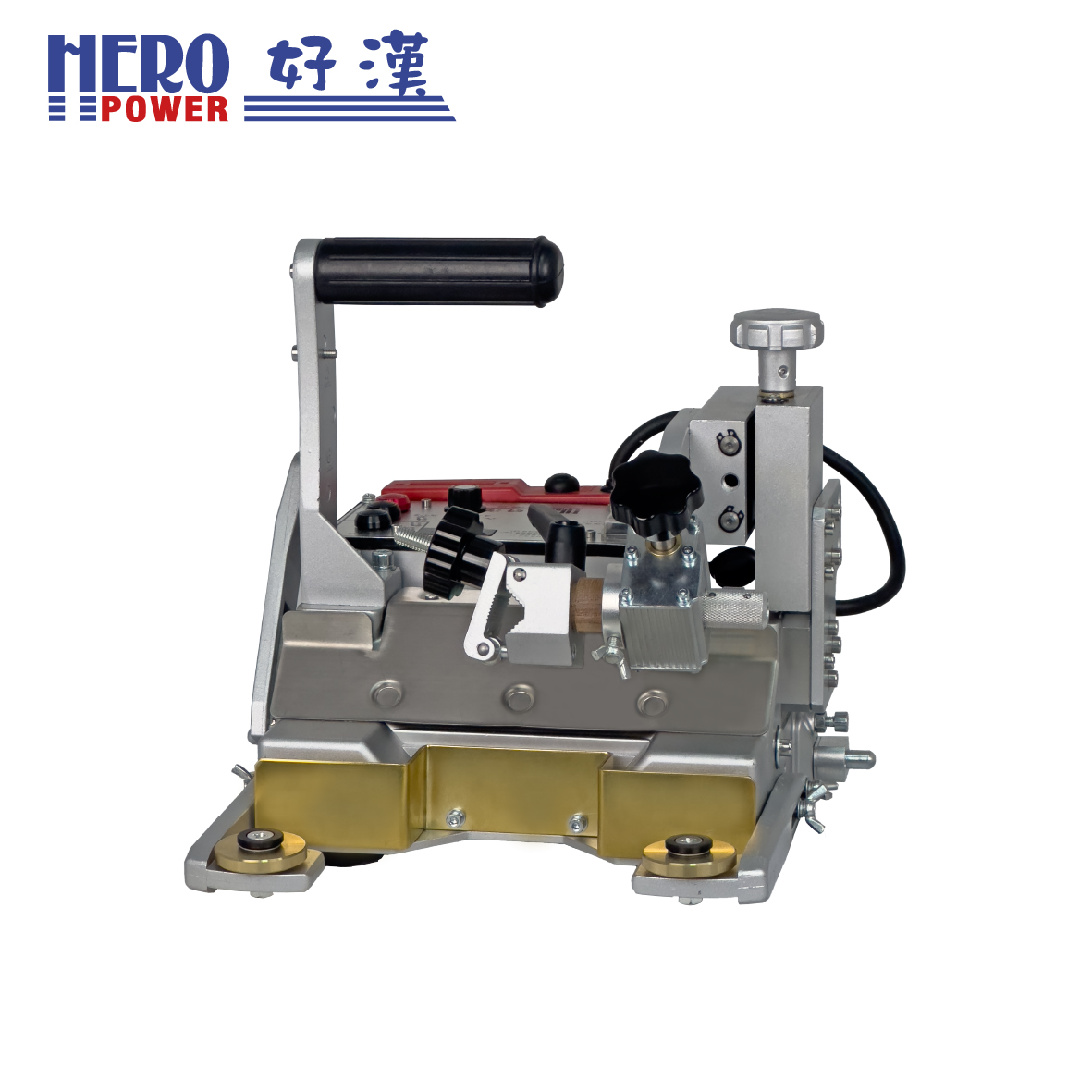

- The whole body is made of aluminum alloy, which is solid and durable,lightweight, and easy to carry.
- This carriage has a magnetic adsorption clutch handle and it is easy to adjust and install.

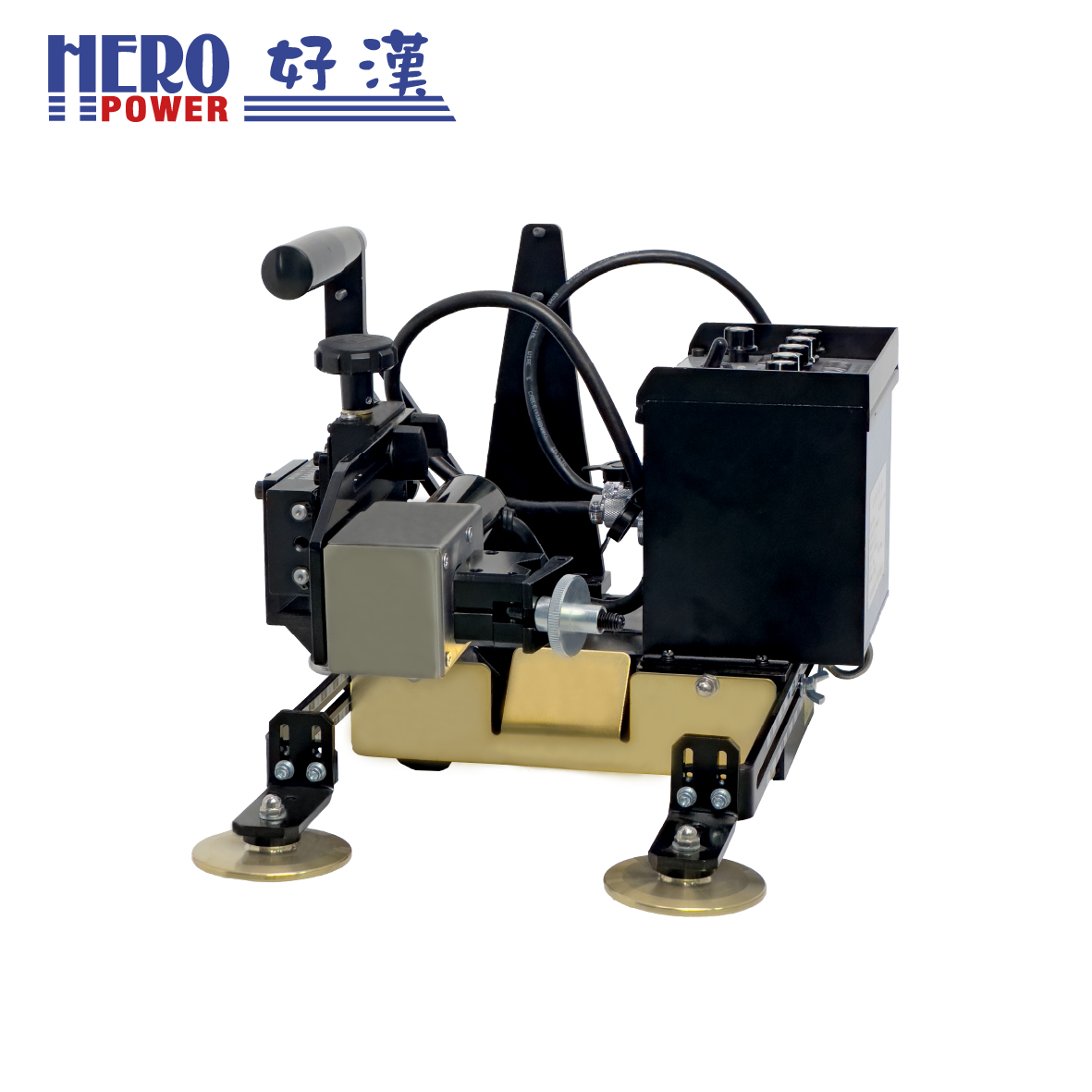

- This carriage is equipped with an oscillator part and the oscillator is driven by a brush-less motor with high precision and long using life.
- With welding torch arc suppression function, arc suppression time adjustment range is 0~2.5 seconds.

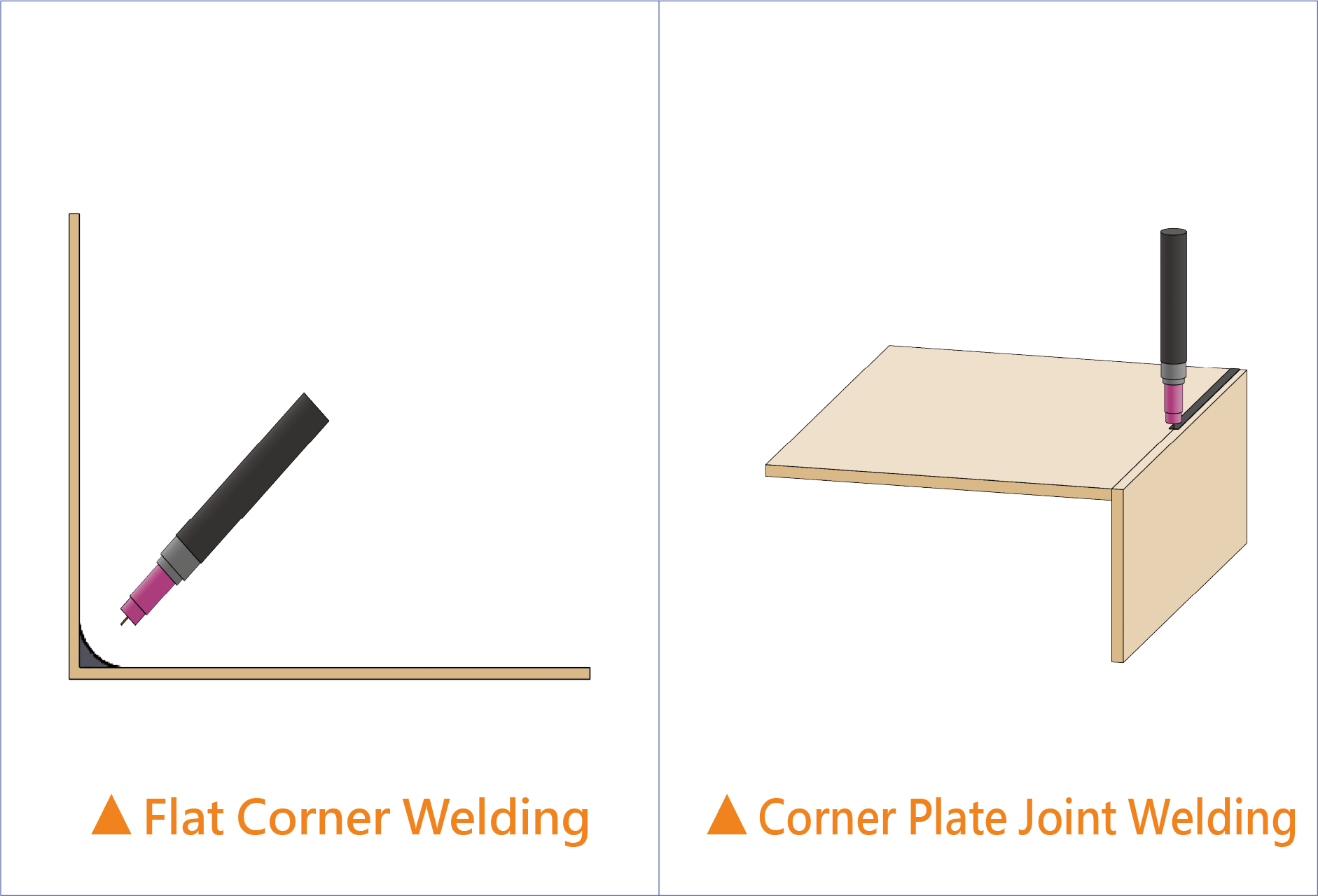

- By means of magnet adsorption and the guide wheel profiling walking,it meets ordinary Flat Fillet Welding and Thick Plate Groove Multi-pass Welding.
- Fitted with rail and hook wheels, it can complete the Flat Butt Weaving Welding.
|
Input Voltage |
24V / 4AH Lithium Battery |
|
Weaving Motor Voltage |
DC 24V |
|
Drive Mode |
Four Wheel Drive |
|
Traction Power |
25kg |
|
Travel Speed |
35~930(mm/min) |
|
Weaving Parameters |
Weaving Speed 0~40 cpm Weaving Angle ±8° Left / Right Dwell Time 0~2.5s |
|
Weaving Mode |
|
|
Track Method |
Guide Wheel |
|
Guide Wheel Height |
3 Options (10、20、38mm) |
|
Torch |
Bend Torch / Straight Torch |
|
Torch Position Adjustment |
Horizontal Angle 40°~55° Up/Down & Left/Right Movement 40mm |
|
Unweldable Distance |
Front 137mm、Rear 137mm |
|
Automatic Stop Function |
Front and rear limit devices |
|
Dimension (W*D*H) |
280*285*290mm |
|
Weight |
12kg(Include Oscillator) |
