HC5-6
Brushless DC Motor with PWM and Encoder for Precise Control
Low-voltage DC Power Supply – No Risk of Electric Leakage or Safety Hazards Durable Lithium Battery – Cordless and Portable for Use Anywhere

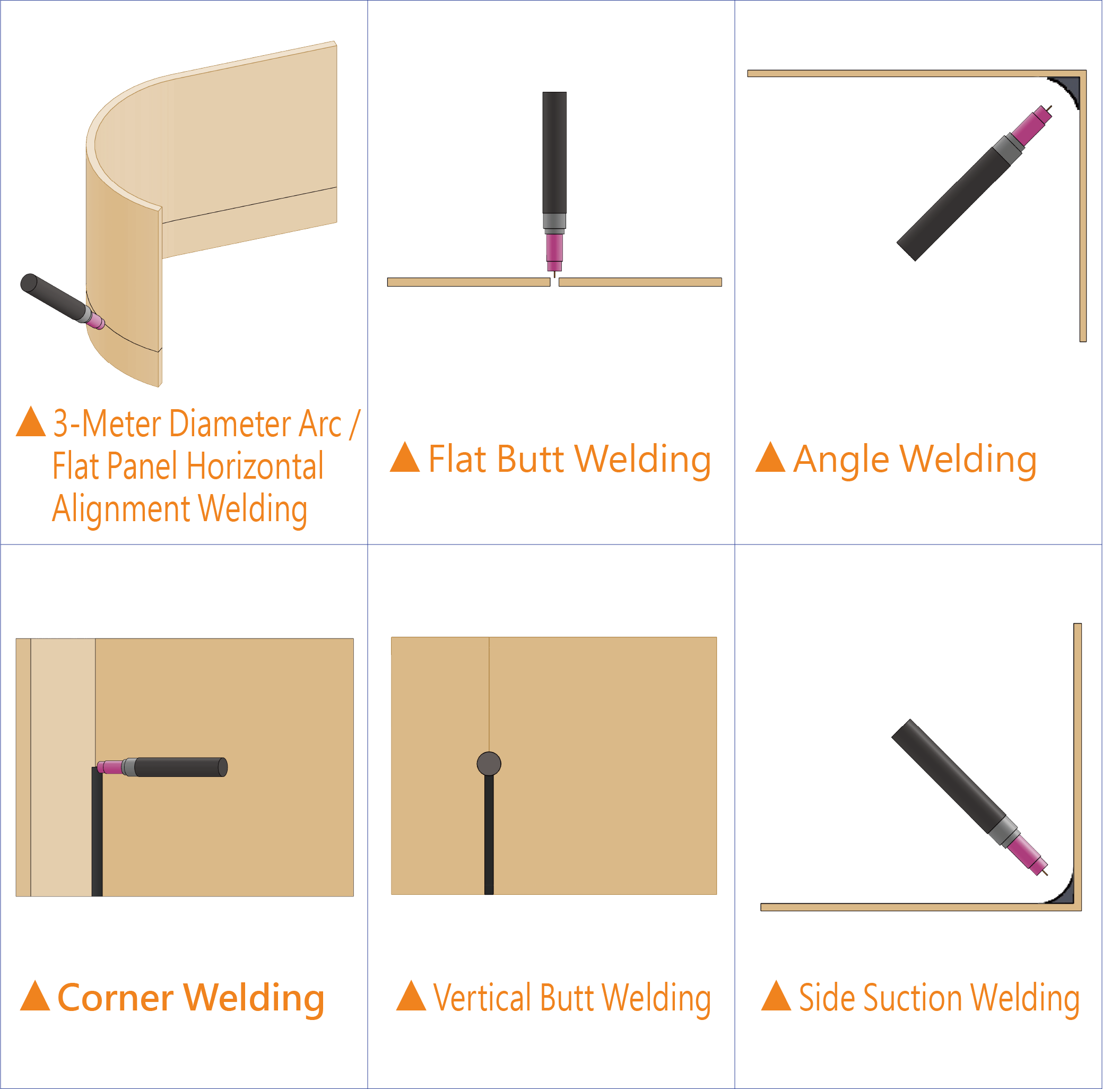

- It is widely used in Flat Fillet Welding, Vertical Fillet Welding,Flat Butt Joint, Horizontal Butt Joint, Vertical Butt Joint and Overhead Welding.
- With the travel angle adjustment function, this carriage is able to meet The Requirements of Build Up Welding or Drawing Welding.
- There is no clearance in the transmission of the oscillator , it ensures the accuracy of the torch weaving .
- This carriage has a magnetic adsorption clutch handle and it is easy to adjust and install.
- High-performance magnetic increases the reliability of profiling welding and also ensure a smooth operation.
- Fitted with soft rail or hard rail it can complete the vertical walking, side suction horizontal walking, curved walking and Flat Butt Welding.
Specifications
|
Input Voltage |

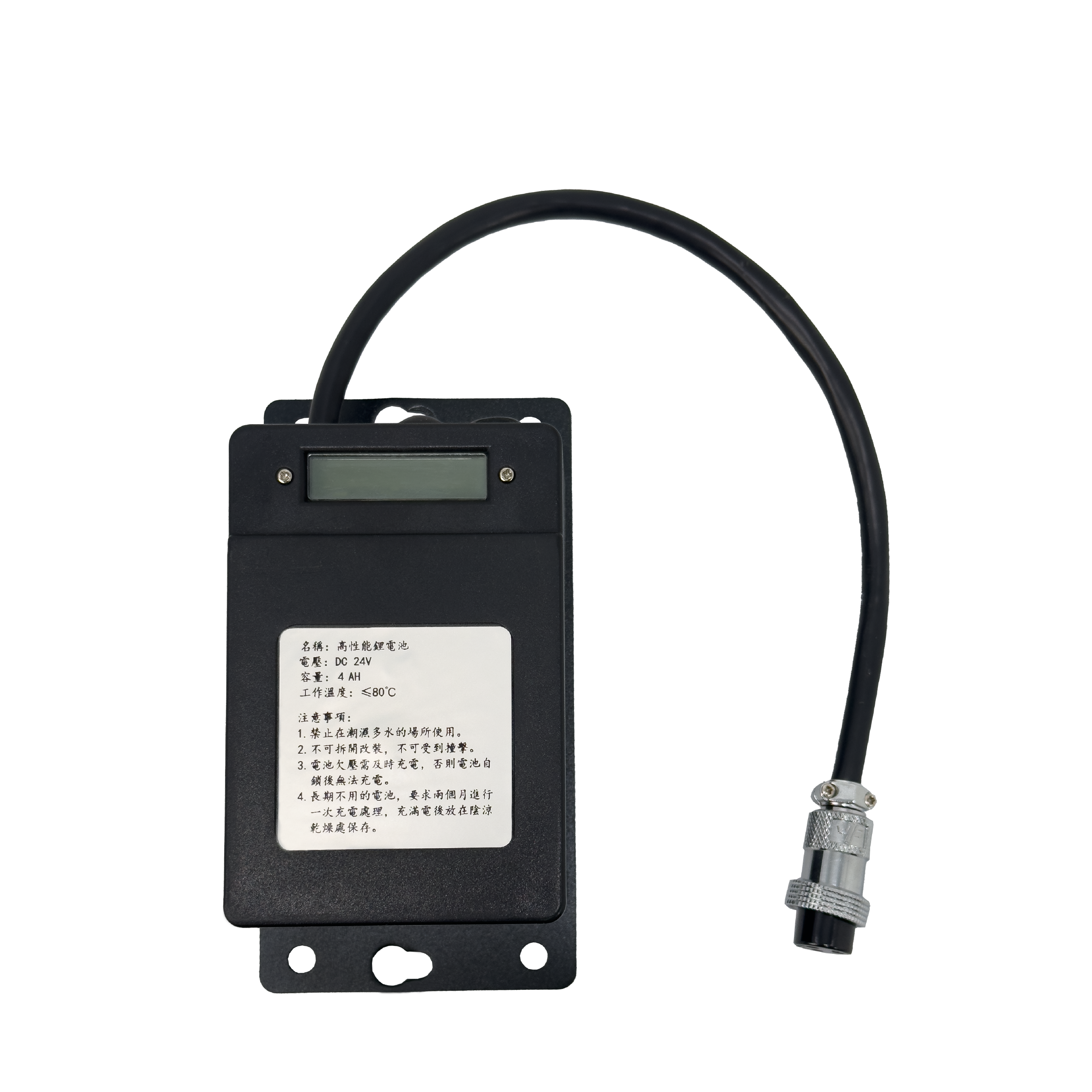

24V / 4AH Lithium Battery |
|
Drive Mode |
Four Wheel Drive |
|
Traction Power |
32kg |
|
Travel Speed |
35~930(mm/min) |
|
Tracking Method |
Guide Wheel / Guide Rail |
|
Torch |
Bend Torch or Straight Torch |
|
Torch Position Adjustment |
Rotate around the X axis ±45° Rotate around the Y axis ±30° Lateral movement 20mm Vertical movement 20mm |
|
Weaving Parameters |
Weaving Angle 0~±8° Max Weaving Speed 0~40 cpm Left / Right Resistance Time 0~2.5s |
|
Unweldable Distance |
Front 150mm、Rear 146mm |
|
Dimension (W*D*H) |
195*314*242mm |
|
Weight |
12kg |
